VLS4012HBX-4R7M-N

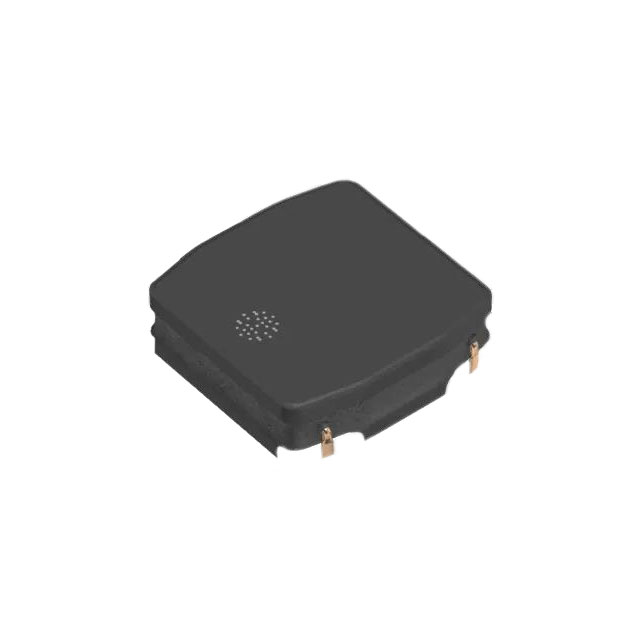

4.7 µH Shielded Drum Core, Wirewound Inductor 2.49 A 159mOhm Max 1616 (4040 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | VLS4012HBX-4R7M-N |
|---|---|
| Current - Saturation (Isat) | 3 A |
| Current Rating | 2.49 A |
| DC Resistance (DCR) (Max) | 159 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 4.7 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1616 (4040 Metric) |
| Package Name | 1616 |
| Shielding | Shielded |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.157 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
