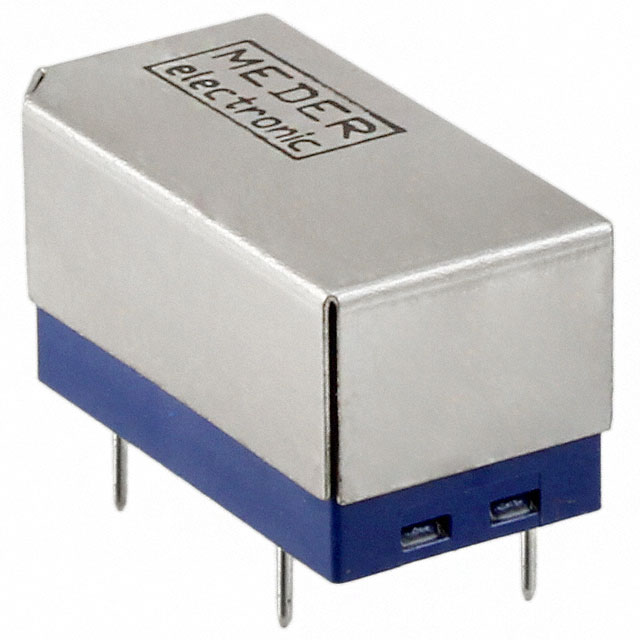

DIL-CL-1A81-9-13M

Active

Standex-Meder Electronics

RELAY TELECOM SPST 250MA

Search across all available documentation for this part.

Active

Standex-Meder Electronics

RELAY TELECOM SPST 250MA

Technical Specifications

Parameters and characteristics for this part

RELAY TELECOM SPST 250MA

Part	Switching Voltage	Coil Resistance	Operate Time	Release Time	Coil Current	Contact Rating (Current)	Contact Form	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Mounting Type	Relay Type
Standex-Meder Electronics DIL-CL-1A81-9-13M	110 VDC, 110 VAC	9 Ohms	500 µs	0.1 ms	357 mA	250 mA	SPST-NO (1 Form A)	PC Pin	-20 C	70 °C	Non Latching	Through Hole	Telecom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	24	$ 12.70

General part information

Telecom Relay SPST-NO (1 Form A) Through Hole
