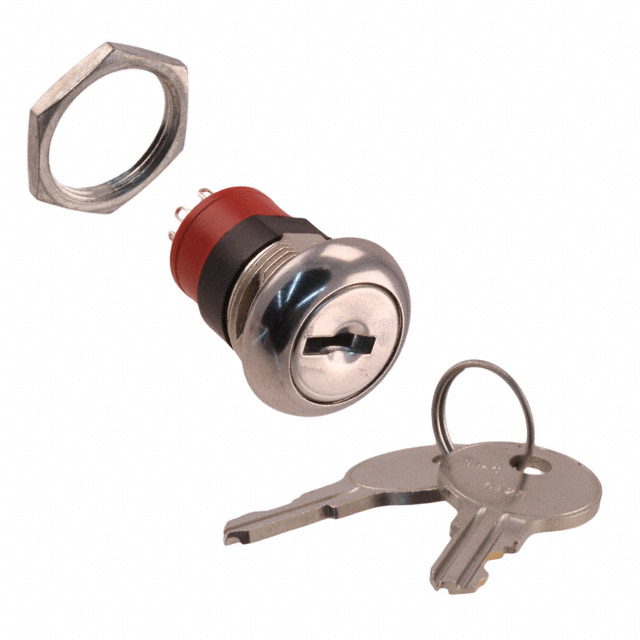

Y108122A203NQ

Active

LITTELFUSE

SWITCH KEYLOCK 2POS SPDT 4A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet y +1

Y108122A203NQ

Active

LITTELFUSE

SWITCH KEYLOCK 2POS SPDT 4A 125V

Deep-Dive with AI

DocumentsDatasheet y +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Y108122A203NQ	Y108122A Series

Actuator Type	Flat Key	Flat Key
Angle of Throw	45 °	45 °
Circuit	SPDT	SPDT
Contact Finish	Silver	Silver, Gold
Contact Material	Copper	Copper
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	4 A	4 A
Depth Behind Flange	26.37 mm	21.8 - 26.37 mm
Depth Behind Flange	-	20.68 mm
Electrical Life	10000 Cycles	10000 Cycles
Features	-	Epoxy Sealed Terminals
Key Removable Positions	1 only	1 only
Number of Positions	2	2
Panel Cutout Dimensions [diameter]	19.3 mm	19.3 mm
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	Solder Lug, PC Pin, Wire Leads
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	28 V	28 V

Y108122A Series

4, 5 & 6 Tumbler Switchlock

Part	Contact Finish	Depth Behind Flange	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Number of Positions	Switch Function	Features	Contact Timing	Contact Material	Key Removable Positions	Actuator Type	Circuit	Angle of Throw	Electrical Life	Voltage Rating - AC	Current Rating (Amps)	Termination Style	Depth Behind Flange [z]
LITTELFUSE Y108122A203NQE	Silver	26.37 mm	28 V	19.3 mm	2	On-Mom	Epoxy Sealed Terminals	Not Specified	Copper	1 only	Flat Key	SPDT	45 °	10000 Cycles	125 V	4 A	Solder Lug
LITTELFUSE Y108122A202NQ	Silver	21.8 mm	28 V	19.3 mm	2	On-Mom		Not Specified	Copper	1 only	Flat Key	SPDT	45 °	10000 Cycles	125 V	4 A	PC Pin
LITTELFUSE Y108122A8WCRG	Gold		28 V	19.3 mm	2	On-Mom		Not Specified	Copper	1 only	Flat Key	SPDT	45 °	10000 Cycles	125 V	4 A	Wire Leads	20.68 mm
LITTELFUSE Y108122A1WCRQE	Silver		28 V	19.3 mm	2	On-Mom	Epoxy Sealed Terminals	Not Specified	Copper	1 only	Flat Key	SPDT	45 °	10000 Cycles	125 V	4 A	Wire Leads	20.68 mm
LITTELFUSE Y108122A203NQ	Silver	26.37 mm	28 V	19.3 mm	2	On-Mom		Not Specified	Copper	1 only	Flat Key	SPDT	45 °	10000 Cycles	125 V	4 A	Solder Lug
LITTELFUSE Y108122A803NQ	Silver	26.37 mm	28 V	19.3 mm	2	On-Mom		Not Specified	Copper	1 only	Flat Key	SPDT	45 °	10000 Cycles	125 V	4 A	Solder Lug
LITTELFUSE Y108122A2WCNQE	Silver		28 V	19.3 mm	2	On-Mom	Epoxy Sealed Terminals	Not Specified	Copper	1 only	Flat Key	SPDT	45 °	10000 Cycles	125 V	4 A	Wire Leads	20.68 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 18.54
		10	$ 16.84
		36	$ 16.66

Description

General part information

Y108122A Series

The Y series 4, 5 & 6 tumbler switchlock from C&K is an anti-static switch, exceeding 20 KV DC static resistance. Typically used in cash registers, point-of-sale terminals and computers, the high-performing Y series is also available in momentary models and with wire leads and/or harnesses.
