2420
ActiveKeystone Electronics

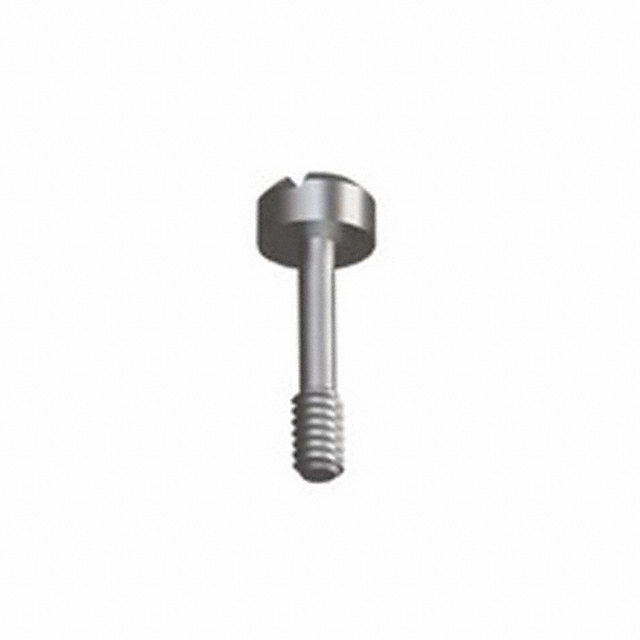

SHLDR SCREW CHEESE SLOTTED #8-32
2420
ActiveKeystone Electronics
SHLDR SCREW CHEESE SLOTTED #8-32
Description
General part information
2420
#8-32 Cheese Head Shoulder Screw Slotted Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 2420 |
|---|---|
| Drive Type | Slotted |
| Head Diameter | 0.313 in |
| Head Height | 0.156 in |
| Length - Below Head | 0.781 in |
| Length - Overall | 0.938 in |
| Material | Stainless Steel |
| Screw Head Type | Cheese Head |
| Thread Size (Max) | 32 mm |
| Thread Size (Min) | 8 mm |
| Type | Shoulder Screw |
