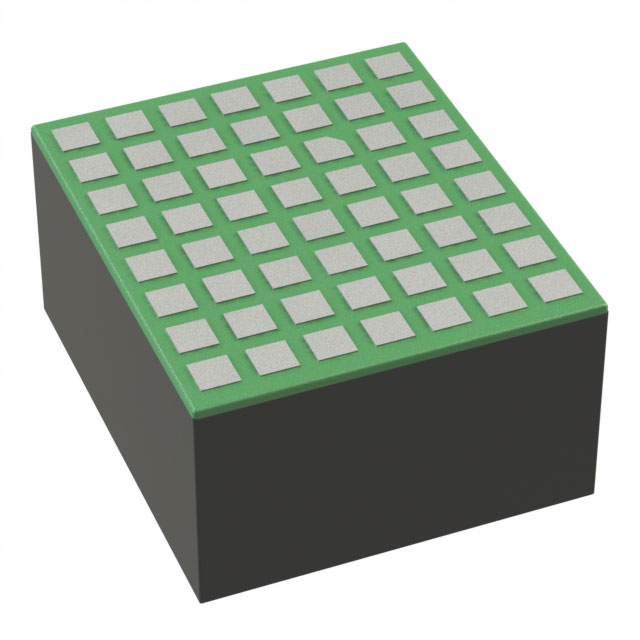

MYMGM1R824ELA5RAD

Active

Murata Power Solutions Inc.

DC/DC POL CONVERTER, ADJUSTABLE, SYNCHRONOUS BUCK, 7.5 V TO 15 V IN, 700 MV TO 1.8 V/24A OUT, SMD-56

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC/DC POL CONVERTER, ADJUSTABLE, SYNCHRONOUS BUCK, 7.5 V TO 15 V IN, 700 MV TO 1.8 V/24A OUT, SMD-56

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MYMGM1R824ELA5RAD	MYMGM1R8 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active High, Enable	Active High, Enable
Current - Output (Max) [Max]	24 A	24 A
Efficiency	94 %	94 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	105 C	105 C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	56-SMD Module	56-SMD Module
Power (Watts)	43 W	43 W
Size / Dimension [x]	10.5 mm	10.5 mm
Size / Dimension [x]	0.41 "	0.41 "
Size / Dimension [y]	0.35 "	0.35 "
Size / Dimension [y]	9 mm	9 mm
Size / Dimension [z]	5 mm	5 mm
Size / Dimension [z]	0.2 "	0.2 "
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	15 V	15 V
Voltage - Input (Min) [Min]	7.5 V	7.5 V
Voltage - Output 1 [Max]	1.8 V	1.8 V
Voltage - Output 1 [Min]	0.7 V	0.7 V

Non-Isolated DC/DC Converters 7.5-15.0VIN, 0.7-1.8VOUT

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Control Features	Efficiency	Features	Voltage - Input (Min) [Min]	Type	Power (Watts)	Applications	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Package / Case	Number of Outputs	Mounting Type
Murata Power Solutions Inc. MYMGM1R824ELA5RA	5 mm	0.35 "	9 mm	10.5 mm	0.2 "	0.41 "	15 V	Active High, Enable	94 %	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	7.5 V	Non-Isolated PoL Module	43 W	ITE (Commercial)	24 A	-40 °C	105 C	0.7 V	1.8 V	56-SMD Module	1	Surface Mount
Murata Power Solutions Inc. MYMGM1R824ELA5RAD	5 mm	0.35 "	9 mm	10.5 mm	0.2 "	0.41 "	15 V	Active High, Enable	94 %	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	7.5 V	Non-Isolated PoL Module	43 W	ITE (Commercial)	24 A	-40 °C	105 C	0.7 V	1.8 V	56-SMD Module	1	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated DC/DC Converters 7.5-15.0VIN, 0.7-1.8VOUT
