SM4051
ActiveFairview Microwave
ADAPT JACK-JACK TYPE N 1.4 VSWR
SM4051
ActiveFairview Microwave
ADAPT JACK-JACK TYPE N 1.4 VSWR
Description
General part information
SM4051

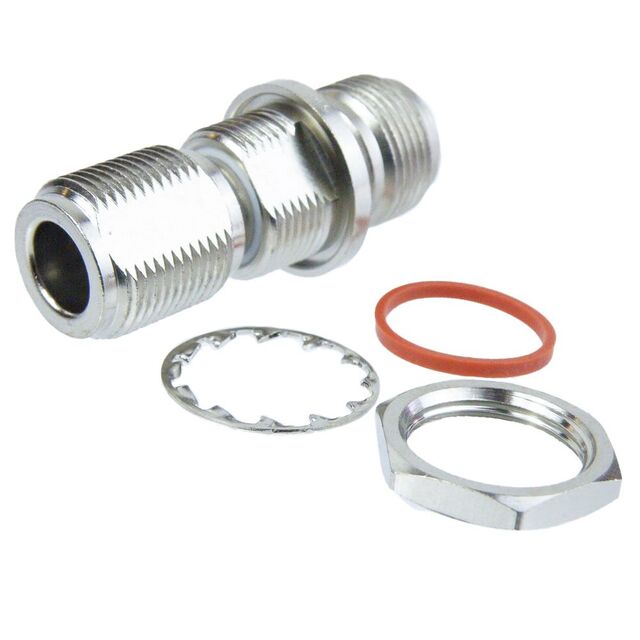

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM4051 |
|---|---|
| Adapter Series | N to N |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | N Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 12.4 GHz |
| Impedance | 75 Ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount |
| Style | Straight |
