NK-M032SE

Active

Nuvoton Technology Corporation

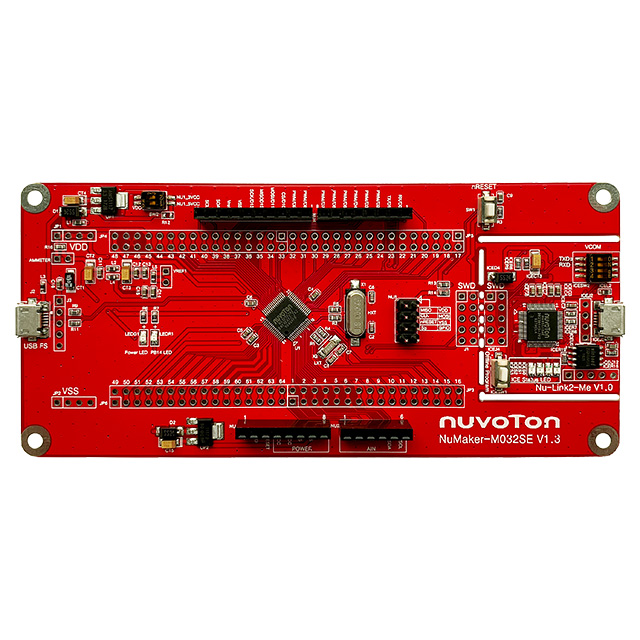

M032SE3AE (LQFP64) EVAL BRD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NK-M032SE

Active

Nuvoton Technology Corporation

M032SE3AE (LQFP64) EVAL BRD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NK-M032SE

Board Type	Evaluation Platform
Contents	Board(s)
Core Processor	ARM® Cortex®-M0
Interconnect System	Arduino R3 Shield
Mounting Type	Fixed
Platform	NuMaker
Type	MCU 32-Bit
Utilized IC / Part	M032SE3AE

M032 Series

Part	Speed	Number of I/O	Core Processor	RAM Size	Operating Temperature [Max]	Operating Temperature [Min]	Core Size	Oscillator Type	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Size	Connectivity	Peripherals	Mounting Type	Program Memory Type	Data Converters	RAM Size	Package / Case	Data Converters	Data Converters [custom]	Type	Interconnect System	Platform	Utilized IC / Part	Contents	Board Type
Nuvoton Technology Corporation M032TC1AE	48 MHz	23	ARM® Cortex®-M0	4K x 8	105 °C	-40 °C	32-Bit Single-Core	Internal	33-QFN (4x4)	1.8 V	3.6 V	32 KB	EBI/EMI I2C SPI UART/USART USB	Brown-out Detect/Reset LVD POR PWM WDT	Surface Mount	FLASH	A/D 10x12b SAR
Nuvoton Technology Corporation M032LE3AE	48 MHz		ARM® Cortex®-M0		105 °C	-40 °C	32-Bit Single-Core	Internal	48-LQFP (7x7)	1.8 V	3.6 V	128 KB	EBI/EMI I2C SPI UART/USART USB	Brown-out Detect/Reset LVD POR PWM WDT	Surface Mount	FLASH	A/D 12x12b SAR	16 K	48-LQFP
Nuvoton Technology Corporation M032KG8AE	48 MHz	107	ARM® Cortex®-M0		105 °C	-40 °C	32-Bit	Internal	128-LQFP (14x14)	1.8 V	3.6 V	256 KB	EBI/EMI I2C SPI UART/USART USB	Brown-out Detect/Reset I2S LVD POR PWM WDT	Surface Mount	FLASH	A/D 7x12b SAR	64 K	128-LQFP
Nuvoton Technology Corporation M032TD2AE	48 MHz	23	ARM® Cortex®-M0		105 °C	-40 °C	32-Bit Single-Core	Internal	33-QFN (4x4)	1.8 V	3.6 V	64 KB	SPI UART/USART USB	Brown-out Detect/Reset LVD POR WDT	Surface Mount	FLASH	A/D 10x12b SAR	8 K	32-VFQFN Exposed Pad
Nuvoton Technology Corporation M032LG8AE	72 MHz		ARM® Cortex®-M0		105 °C	-40 °C	32-Bit Single-Core	Internal	48-LQFP (7x7)	2 V	3.6 V	256 KB	EBI/EMI I2C SPI UART/USART USB	Brown-out Detect/Reset LVD POR PWM WDT	Surface Mount	FLASH	A/D 12x12b SAR	64 K	48-LQFP
Nuvoton Technology Corporation M032LD2AE	48 MHz		ARM® Cortex®-M0		105 °C	-40 °C	32-Bit Single-Core	Internal	48-LQFP (7x7)	1.8 V	3.6 V	64 KB	SPI UART/USART USB	Brown-out Detect/Reset LVD POR WDT	Surface Mount	FLASH	A/D 12x12b SAR	8 K	48-LQFP
Nuvoton Technology Corporation M032SE3AE	48 MHz	51	ARM® Cortex®-M0		105 °C	-40 °C	32-Bit Single-Core	Internal	64-LQFP (7x7)	1.8 V	3.6 V	128 KB	EBI/EMI I2C SPI UART/USART USB	Brown-out Detect/Reset LVD POR PWM WDT	Surface Mount	FLASH	SAR	16 K	64-LQFP	12 b	16
Nuvoton Technology Corporation NK-M032KG			ARM® Cortex®-M0												Fixed							MCU 32-Bit	Arduino R3 Shield	NuMaker	M032KG8AE	Board(s)	Evaluation Platform
Nuvoton Technology Corporation M032LG6AE	72 MHz		ARM® Cortex®-M0		105 °C	-40 °C	32-Bit Single-Core	Internal	48-LQFP (7x7)	2 V	3.6 V	256 KB	EBI/EMI I2C SPI UART/USART USB	Brown-out Detect/Reset LVD POR PWM WDT	Surface Mount	FLASH	A/D 12x12b SAR		48-LQFP
Nuvoton Technology Corporation NK-M032TC			ARM® Cortex®-M0												Fixed							MCU 32-Bit	Arduino R3 Shield	NuMaker	M032TC1AE	Board(s)	Evaluation Platform

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.68

Description

General part information

M032 Series

M032SE3AE NuMaker NuMicro® ARM® Cortex®-M0 MCU 32-Bit Embedded Evaluation Board
