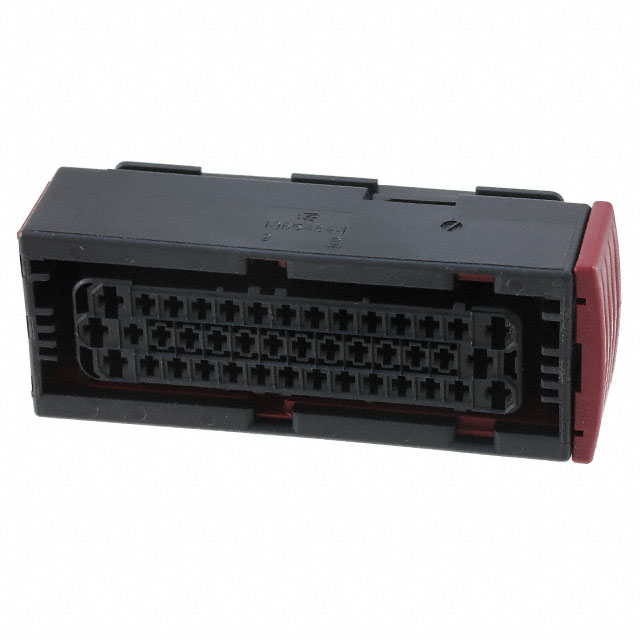

1-967281-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 42POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-967281-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 42POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-967281-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 42 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Row Spacing [Max] | 0.236 in |
| Row Spacing [Max] | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.45 | |
| 10 | $ 5.65 | |||
| 25 | $ 5.50 | |||
| 50 | $ 5.38 | |||
| 195 | $ 5.06 | |||
| 390 | $ 5.03 | |||
| 585 | $ 4.70 | |||
| 1170 | $ 4.20 | |||
| 2535 | $ 3.91 | |||
967281 Series
CONN RCPT HSG 42POS 5.00MM
| Part | Insulation Material | Number of Rows | Connector Type | Contact Termination | Operating Temperature [Max] | Operating Temperature [Min] | Row Spacing [Max] | Row Spacing [Max] | Color | Number of Positions | Pitch [x] | Pitch [x] | Contact Type | Features | Note | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967281-1 | Polybutylene Terephthalate (PBT), Glass Filled | 3 | Receptacle | Crimp | 85 °C | -40 °C | 0.236 in | 6 mm | Black | 42 | 5 mm | 0.197 in | Female Socket | Sealed | Contacts Not Included | Free Hanging (In-Line) |
Description
General part information
967281 Series
42 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)
