5308 902
ActiveAltech Corporation

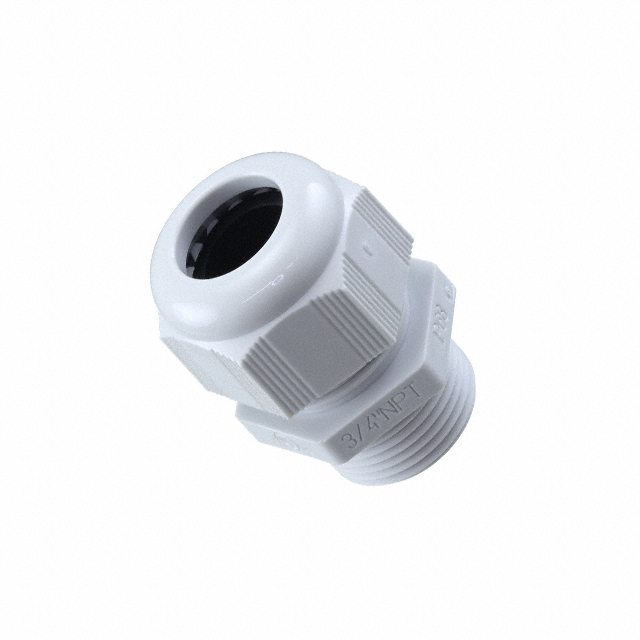

CABLE GLAND 9-18.01MM 3/4" NPT
5308 902
ActiveAltech Corporation
CABLE GLAND 9-18.01MM 3/4" NPT
Description
General part information
5308 Series
Cable Gland Polyamide (PA), Nylon 3/4" NPT Gray
Technical Specifications
Parameters and characteristics for this part
| Specification | 5308 902 |
|---|---|
| Color | Gray |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Material | Nylon, Polyamide (PA) |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Outside Cable Diameter (Max) | 0.709 in |
| Outside Cable Diameter (Min) | 0.354 in |
| Panel Hole Size | 1.05 in |
| Thread Length | 0.591 in |
| Thread Size (Diameter) | 0.75 in |
| Thread Type | NPT |
| Type | Cable Gland |
