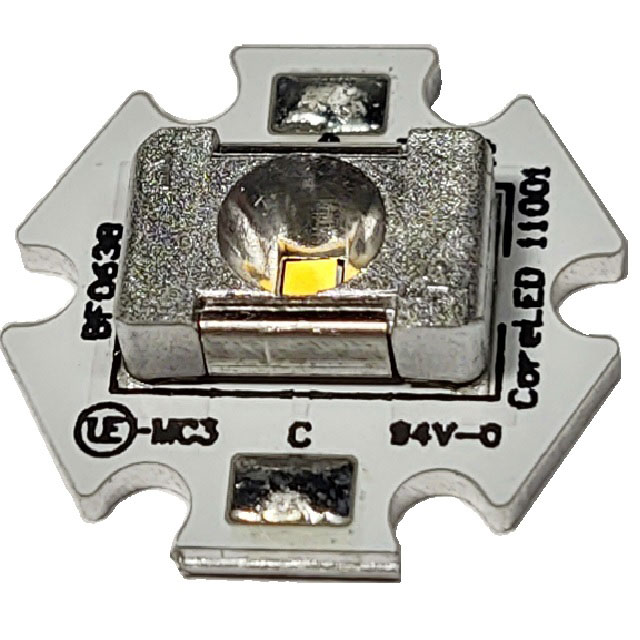

11001-STAR-E17

Active

CoreLED Systems, LLC

LED COB SMR STARBOARD

Search across all available documentation for this part.

Active

CoreLED Systems, LLC

LED COB SMR STARBOARD

Technical Specifications

Parameters and characteristics for this part

Specification	11001-STAR-E17

Configuration	Starboard
CRI (Color Rendering Index)	82
Current - Max [Max]	700 mA
Current - Test	350 mA
Height [z]	1.57 mm
Lens Type	Flat
Light Emitting Surface (LES) [x]	1.7 mm
Light Emitting Surface (LES) [y]	1.7 mm
Lumens/Watt @ Current - Test	141 lm/W
Luminous Flux @ Current/Temperature	148 lm
Size / Dimension [diameter]	20 mm
Type	Chip On Board (COB)
Viewing Angle	28 °
Voltage - Forward (Vf) (Typ)	3 V

LED COB SMR STARBOARD

Part	Height [z]	Configuration	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Viewing Angle	Type	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Current - Max [Max]	CRI (Color Rendering Index)	Current - Test	Size / Dimension [diameter]	Lens Type	Voltage - Forward (Vf) (Typ)
CoreLED Systems, LLC 11001-STAR-E17	1.57 mm	Starboard	148 lm	141 lm/W	28 °	Chip On Board (COB)	1.7 mm	1.7 mm	700 mA	82	350 mA	20 mm	Flat	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) SMR Starboard
