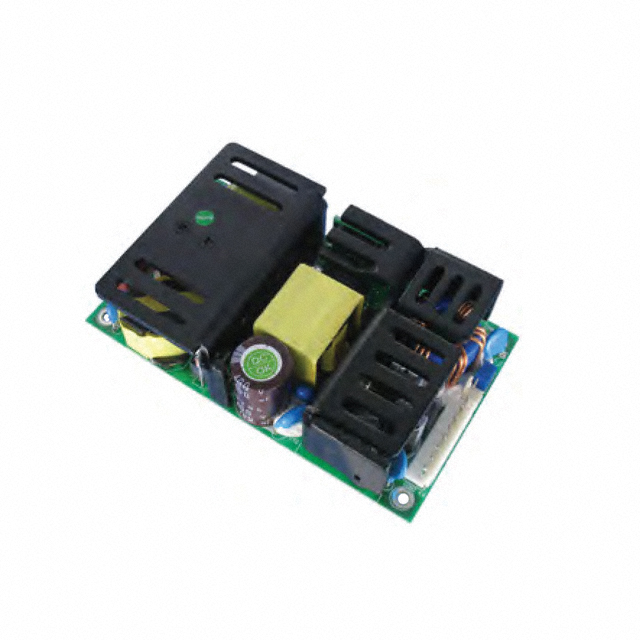

QPSF-125-24
ActiveQualtek
AC/DC CONVERTER 24V 125W
Deep-Dive with AI
Search across all available documentation for this part.
QPSF-125-24
ActiveQualtek
AC/DC CONVERTER 24V 125W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QPSF-125-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 5.2 A |
| Efficiency | 88 % |
| Features | Universal Input, Remote Sense, Adjustable Output, PFC |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 125 W |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [x] | 5 in |
| Size / Dimension [y] | 76 mm |
| Size / Dimension [y] | 2.99 in |
| Size / Dimension [z] | 30.5 mm |
| Size / Dimension [z] | 1.2 " |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 100 | $ 72.50 | |
Description
General part information
QPSF-125-24
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
