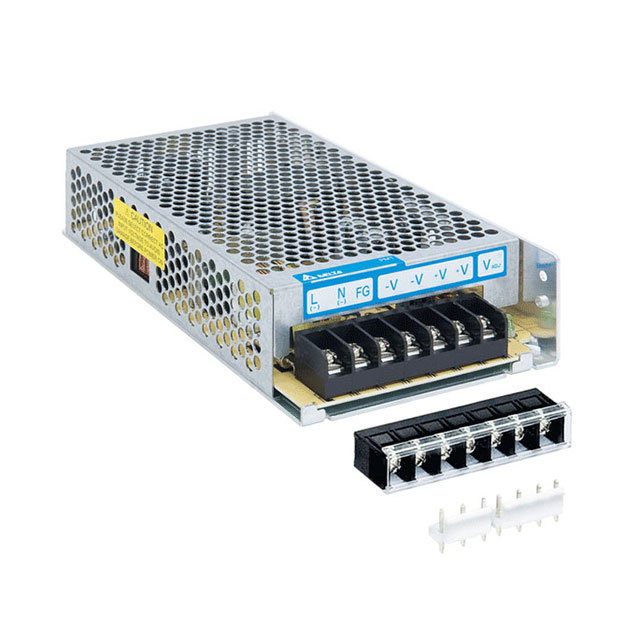

PMT-48V150W1AG

Active

Delta Electronics

AC/DC CONVERTER 48V 150W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 48V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	PMT-48V150W1AG

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, CB, CCC, CE
Current - Output 1	3.3 A
Efficiency	89 %
Features	Adjustable Output, Load Sharing
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	150 W
Size / Dimension [x]	178 mm, 7.01 in
Size / Dimension [y]	3.82 in, 97 mm
Size / Dimension [z]	1.5 ", 38 mm
Type	Enclosed
Voltage - Input [Max]	132 VAC, 264 VAC
Voltage - Input [Min]	90 VAC, 180 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Voltage - Output 1	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Power (Watts)	Features	Number of Outputs	Type	Approval Agency	Current - Output 1	Efficiency
Delta Electronics PMT-48V350W1AK	8.46 "	50 mm	1.97 "	215 mm	115 mm	4.53 "	Chassis Mount	48 V	3000 V	-10 °C	70 °C	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	350 W	Adjustable Output Load Sharing	1	Enclosed	CB CE cURus TUV	7.3 A	87.5 %
Delta Electronics PMT-48V150W1AH		1.5 " 38 mm		7.01 in 178 mm	3.82 in 97 mm		Chassis Mount	48 V	3000 V	-10 °C	70 °C	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	150 W	Adjustable Output Load Sharing	1	Enclosed	CB CCC CE cURus TUV	3.3 A	89 %
Delta Electronics PMT-48V150W1AA		1.5 " 38 mm		7.01 in 178 mm	3.82 in 97 mm		Chassis Mount	48 V	3000 V	-10 °C	70 °C	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	150 W	Adjustable Output Load Sharing	1	Enclosed	CB CCC CE cURus TUV	3.3 A	89 %
Delta Electronics PMT-48V150W1AG		1.5 " 38 mm		7.01 in 178 mm	3.82 in 97 mm		Chassis Mount	48 V	3000 V	-10 °C	70 °C	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	150 W	Adjustable Output Load Sharing	1	Enclosed	CB CCC CE cURus TUV	3.3 A	89 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 35.92
