3CV-PL(40)

Hirose Electric Co Ltd

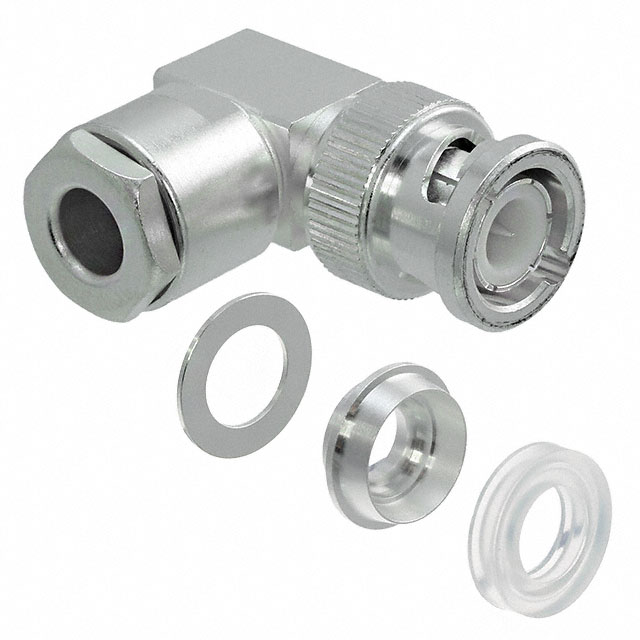

CONN BNC PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Hirose Electric Co Ltd

CONN BNC PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	3CV-PL(40)

Body Finish	Silver
Body Material	Brass
Cable Group	3C-2V
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Clamp

CONN BNC PLUG R/A 50 OHM SOLDER

Part	Housing Color	Mating Cycles	Center Contact Plating	Center Contact Material	Shield Termination	Body Finish	Fastening Type	Impedance	Dielectric Material	Connector Type	Cable Group	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Connector Style	Frequency - Max [Max]	Mounting Type	Number of Ports
Hirose Electric Co Ltd 3CV-PL(40)	Silver	1000	Silver	Brass	Clamp	Silver	Bayonet Lock	50 Ohms	Polytetrafluoroethylene (PTFE)	Male Pin, Plug	3C-2V	Solder	-30 ░C	60 °C	Brass	BNC	4 GHz	Free Hanging (In-Line), Right Angle	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.83

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
