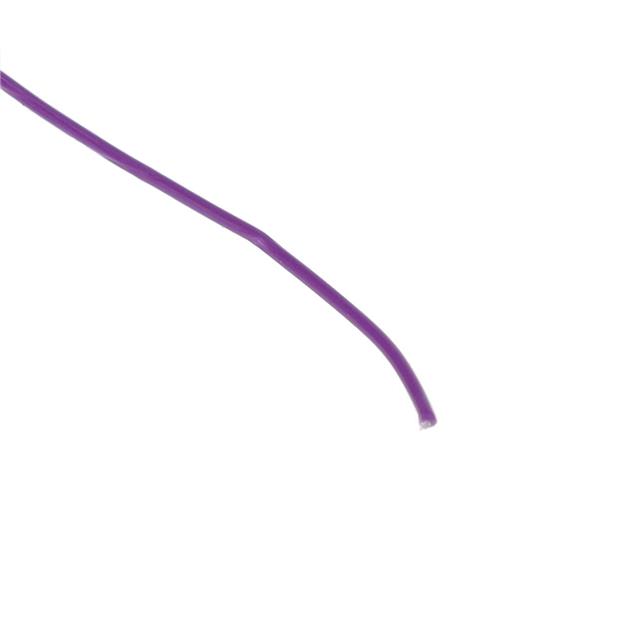

83000 007100

Active

Belden Inc.

HOOK-UP STRND 30AWG VIOLET 100'

Search across all available documentation for this part.

Active

Belden Inc.

HOOK-UP STRND 30AWG VIOLET 100'

Technical Specifications

Parameters and characteristics for this part

Specification	83000 007100

Cable Type	Hook-Up
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	38 AWG
Conductor Strand [custom]	7
Features	High Temperature
Jacket (Insulation) Diameter [diameter]	0.032 in
Jacket (Insulation) Diameter [diameter]	0.81 mm
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Violet
Length [x]	30.5 m
Length [x]	100 ft
Qualification	MIL-W-16878/4
Ratings	UL Style 1213
Voltage	600 V
Wire Gauge	30 AWG

Part	Features	Cable Type	Ratings	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Wire Gauge	Length [x]	Length [x]	Voltage	Qualification	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Operating Temperature
Belden Inc. 83000 004100	High Temperature	Hook-Up	UL Style 1213	Copper Silver Coated	38 AWG	7	Yellow	30 AWG	30.5 m	100 ft	600 V	MIL-W-16878/4	Tetrafluoroethylene (TFE)	0.25 mm	0.01 in	0.032 in	0.81 mm
Belden Inc. 83000 0051000	High Temperature	Hook-Up	UL Style 1213	Copper Silver Coated	38 AWG	7	Green	30 AWG			600 V	MIL-W-16878/4	Tetrafluoroethylene (TFE)	0.25 mm	0.01 in	0.032 in	0.81 mm	1000 ft	304.8 m
Belden Inc. 83000 0021000	High Temperature	Hook-Up	UL Style 1213	Copper Silver Coated	38 AWG	7	Red	30 AWG			600 V	MIL-W-16878/4	Tetrafluoroethylene (TFE)	0.25 mm	0.01 in	0.032 in	0.81 mm	1000 ft	304.8 m
Belden Inc. 83000 007100	High Temperature	Hook-Up	UL Style 1213	Copper Silver Coated	38 AWG	7	Violet	30 AWG	30.5 m	100 ft	600 V	MIL-W-16878/4	Tetrafluoroethylene (TFE)	0.25 mm	0.01 in	0.032 in	0.81 mm
Belden Inc. 83000 005100	High Temperature	Hook-Up	UL Style 1213	Copper Silver Coated	38 AWG	7	Green	30 AWG	30.5 m	100 ft	600 V	MIL-W-16878/4	Tetrafluoroethylene (TFE)	0.25 mm	0.01 in	0.032 in	0.81 mm			200 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 AWG Hook-Up Wire 7/38 Violet 600V 100.0' (30.5m)
