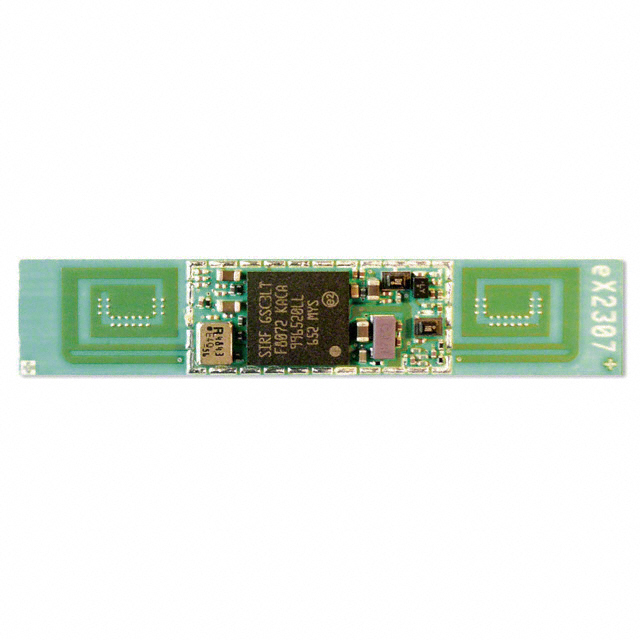

M10214-A1

Active

Antenova

RF RCVR GPS 1575.42MHZ MODULE

Search across all available documentation for this part.

Active

Antenova

RF RCVR GPS 1575.42MHZ MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	M10214-A1

Antenna Connector	On-Board, Trace
Applications	PDA's, Portable Audio/Video, Smartphones
Current - Receiving	27 mA
Data Interface	Connector
Frequency	1575.42 MHz
Modulation or Protocol	GPS
Mounting Type	User Defined
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Sensitivity	-159 dBm
Supplier Device Package	Module
Voltage - Supply	3.6 V

RF RCVR GPS 1575.42MHZ MODULE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Connector	Frequency	Voltage - Supply	Current - Receiving	Applications	Data Interface	Sensitivity	Package / Case	Supplier Device Package	Mounting Type	Modulation or Protocol
Antenova M10214-A1	85 °C	-40 °C	On-Board, Trace	1575.42 MHz	3.6 V	27 mA	PDA's, Portable Audio/Video, Smartphones	Connector	-159 dBm	Module	Module	User Defined	GPS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RADIONOVA® RF Receiver GPS 1575.42MHz -159dBm On-Board, Trace Module

Technical documentation and resources
