AWK105C7224MPHF

Active

TAIYO YUDEN

CAP ,MLCC ,0402,4V ,X7S,0.22UF20% ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

TAIYO YUDEN

CAP ,MLCC ,0402,4V ,X7S,0.22UF20% ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	AWK105C7224MPHF

Applications	Automotive, Bypass, Decoupling
Capacitance	0.22 µF
Features	Low ESL (Reverse Geometry)
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0510 Metric, 0204
Ratings	AEC-Q200
Size / Dimension [x]	0.02 "
Size / Dimension [x]	0.52 mm
Size / Dimension [y]	1 mm
Size / Dimension [y]	0.039 "
Temperature Coefficient	X7S
Thickness (Max) [Max]	0.014 in
Thickness (Max) [Max]	0.35 mm
Tolerance	20 %
Voltage - Rated	4 V

CAP ,MLCC ,0402,4V ,X7S,0.22UF20% ROHS COMPLIANT: YES

Part	Temperature Coefficient	Applications	Ratings	Package / Case	Tolerance	Voltage - Rated	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Features	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]
TAIYO YUDEN AWK105C7224MPHF	X7S	Automotive, Bypass, Decoupling	AEC-Q200	0204, 0510 Metric	20 %	4 V	0.014 in	0.35 mm	1 mm	0.02 "	0.52 mm	0.039 "	MLCC, Surface Mount	Low ESL (Reverse Geometry)	0.22 µF	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

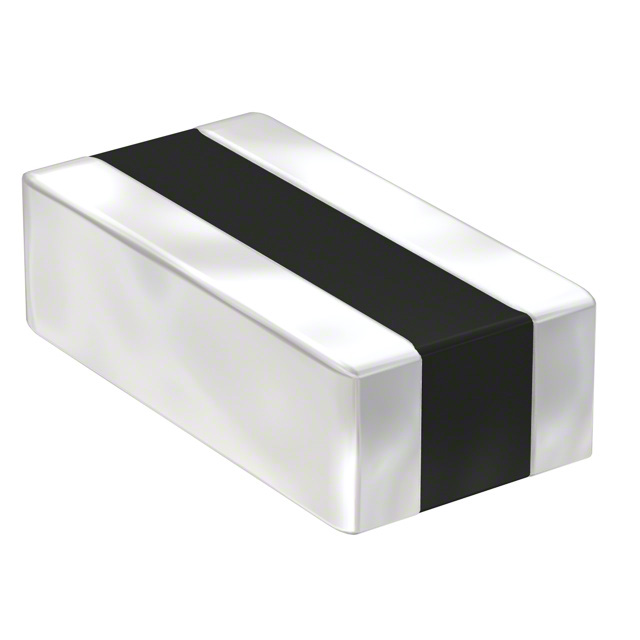

0.22 µF ±20% 4V Ceramic Capacitor X7S 0204 (0510 Metric)
