1769696

Active

Phoenix Contact

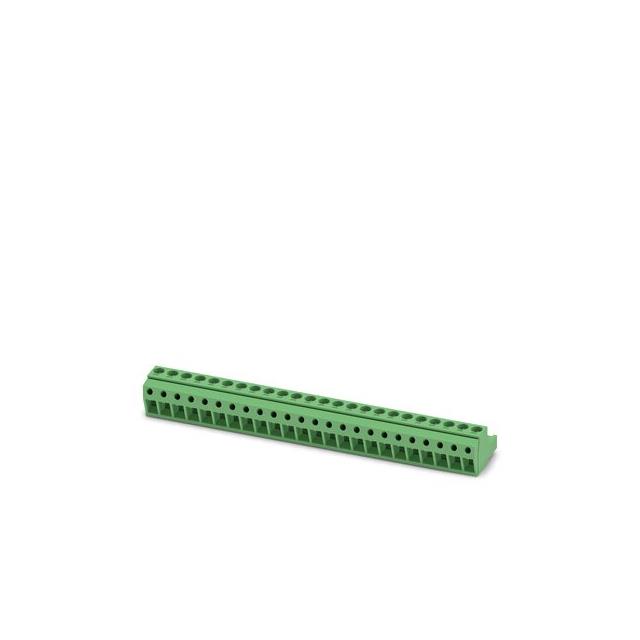

PLUGGABLE TERMINAL BLOCKS 24 POS 5.08MM PITCH PLUG 24-12 AWG SCREW

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 24 POS 5.08MM PITCH PLUG 24-12 AWG SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1769696	MSTBP Series

Color	Green	Green
Contact Mating Finish	Tin	Tin
Current - IEC	12 A	12 A
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.591 in	0.591 in
Insulation Height	15 mm	15 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	24	6 - 24
Pitch [x]	0.2 in	0.197 - 0.2 in
Pitch [x]	5.08 mm	5 - 5.08 mm
Positions Per Level	-	6
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw [Max]	0.6 Nm	0.6 Nm
Torque - Screw [Max]	5.3 Lb-In	5.3 Lb-In
Torque - Screw [Min]	4.4 Lb-In	4.4 Lb-In
Torque - Screw [Min]	0.5 Nm	0.5 Nm
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	630 V	630 V
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛ [Max]	2.5 mm˛	2.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.2 mm˛	0.2 mm˛
Wire Strip Length	7 mm	7 mm

Pluggable Terminal Blocks 24 Pos 5.08mm pitch Plug 24-12 AWG Screw

Part	Contact Mating Finish	Positions Per Level	Pitch [x]	Pitch [x]	Color	Wire Strip Length	Material Flammability Rating	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Number of Levels	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Voltage - UL	Number of Positions	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Screw Size	Current - IEC	Housing Material	Mounting Type	Insulation Height	Insulation Height	Voltage - IEC
Phoenix Contact 1765810	Tin	6	5 mm	0.197 in	Green	7 mm	UL94 V-0	Plug, Female Sockets	30 AWG	12 AWG	Screw - Rising Cage Clamp	1	0.2 mm˛	2.5 mm˛	300 V	6	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	M3	12 A	Polyamide (PA), Nylon	Free Hanging (In-Line)	0.591 in	15 mm	630 V
Phoenix Contact 1769696	Tin		5.08 mm	0.2 in	Green	7 mm	UL94 V-0	Plug, Female Sockets	30 AWG	12 AWG	Screw - Rising Cage Clamp	1	0.2 mm˛	2.5 mm˛	300 V	24	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	M3	12 A	Polyamide (PA), Nylon	Free Hanging (In-Line)	0.591 in	15 mm	630 V
