11TS15-7

Active

Honeywell Sensing and Productivity Solutions

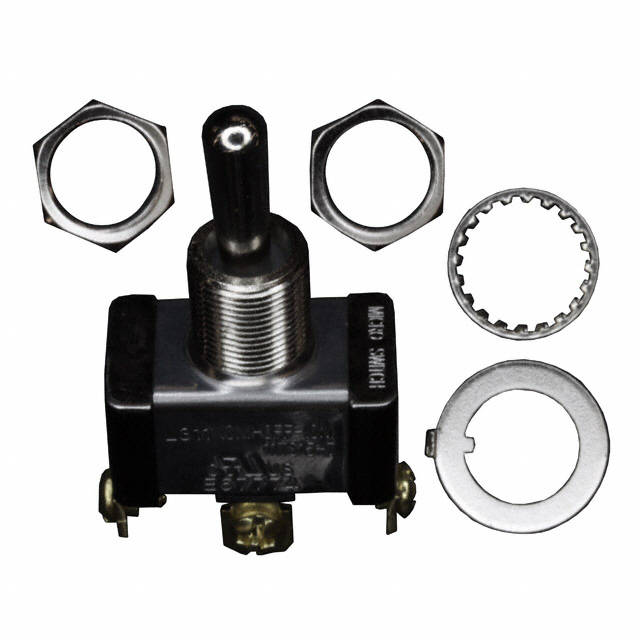

SWITCH TOGGLE SPDT 20A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 20A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11TS15-7	11TS1 Series

Actuator Length [x]	16.51 mm	16.51 mm
Actuator Material	Nickel Plated	Nickel Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	SPDT	SPST-NO, SPDT
Current Rating (Amps)	20 A	20 A
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-54 °C	-54 °C
Panel Cutout Dimensions [diameter]	12.4 mm	12.4 mm
Switch Function	Mom-Off-Mom	Off-Mom, On-On, Mom-Off-Mom, On-Mom
Termination Style	Screw Terminal	Screw Terminal, Solder Lug
Voltage Rating - AC	125 V	125 V

SWITCH TOGGLE SPST-NO 20A 125V

Part	Voltage Rating - AC	Actuator Length [x]	Actuator Material	Illumination	Circuit	Termination Style	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Bushing Thread	Actuator Type	Switch Function	Current Rating (Amps)
Honeywell Sensing and Productivity Solutions 11TS15-6	125 V	16.51 mm	Nickel Plated	Non-Illuminated	SPST-NO	Screw Terminal	12.4 mm	-54 °C	71 °C	15/32-32	Standard Round	Off-Mom	20 A
Honeywell Sensing and Productivity Solutions 11TS115-3	125 V	16.51 mm	Nickel Plated	Non-Illuminated	SPDT	Solder Lug	12.4 mm	-54 °C	71 °C	15/32-32	Standard Round	On-On	20 A
Honeywell Sensing and Productivity Solutions 11TS15-7	125 V	16.51 mm	Nickel Plated	Non-Illuminated	SPDT	Screw Terminal	12.4 mm	-54 °C	71 °C	15/32-32	Standard Round	Mom-Off-Mom	20 A
Honeywell Sensing and Productivity Solutions 11TS15-8	125 V	16.51 mm	Nickel Plated	Non-Illuminated	SPDT	Screw Terminal	12.4 mm	-54 °C	71 °C	15/32-32	Standard Round	On-Mom	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SPDT Panel Mount
