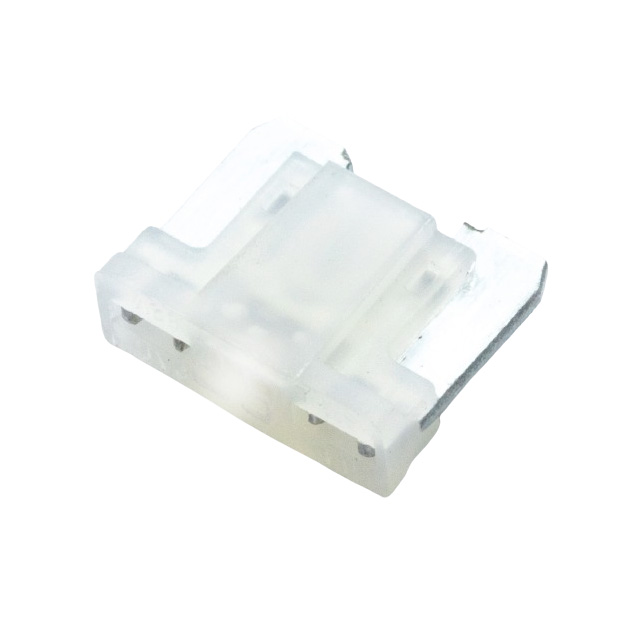

ANS-I-25A
ActiveOptiFuse
FUSE AUTO 25A 32VDC BLADE MINI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANS-I-25A
ActiveOptiFuse
FUSE AUTO 25A 32VDC BLADE MINI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANS-I-25A |
|---|---|
| Approval Agency | ISO, SAE |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Clear |
| Current Rating (Amps) | 25 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | Blade, Miniature (Low Profile) |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.433 in |
| Size / Dimension [x] | 11 mm |
| Size / Dimension [y] | 3.91 mm |
| Size / Dimension [y] | 0.154 in |
| Size / Dimension [z] | 8.75 mm |
| Size / Dimension [z] | 0.344 in |
| Voltage Rating - DC | 32 V |
ANS-I Series
| Part | Approval Agency | Response Time | Voltage Rating - DC | Package / Case | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Fuse Type | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse | ISO SAE | Fast Blow | 32 V | Blade Miniature (Low Profile) | 8.75 mm | 3.91 mm | 0.344 in | 0.433 in | 11 mm | 0.154 in | Automotive | 30 A | 1 kA | Green | Requires Holder |
OptiFuse | ISO SAE | Fast Blow | 32 V | Blade Miniature (Low Profile) | 8.75 mm | 3.91 mm | 0.344 in | 0.433 in | 11 mm | 0.154 in | Automotive | 3 A | 1 kA | Violet | Requires Holder |
OptiFuse | ISO SAE | Fast Blow | 32 V | Blade Miniature (Low Profile) | 8.75 mm | 3.91 mm | 0.344 in | 0.433 in | 11 mm | 0.154 in | Automotive | 5 A | 1 kA | Tan | Requires Holder |
OptiFuse | ISO SAE | Fast Blow | 32 V | Blade Miniature (Low Profile) | 8.75 mm | 3.91 mm | 0.344 in | 0.433 in | 11 mm | 0.154 in | Automotive | 20 A | 1 kA | Yellow | Requires Holder |
OptiFuse | ISO SAE | Fast Blow | 32 V | Blade Miniature (Low Profile) | 8.75 mm | 3.91 mm | 0.344 in | 0.433 in | 11 mm | 0.154 in | Automotive | 4 A | 1 kA | Pink | Requires Holder |
OptiFuse | ISO SAE | Fast Blow | 32 V | Blade Miniature (Low Profile) | 8.75 mm | 3.91 mm | 0.344 in | 0.433 in | 11 mm | 0.154 in | Automotive | 25 A | 1 kA | Clear | Requires Holder |
OptiFuse | ISO SAE | Fast Blow | 32 V | Blade Miniature (Low Profile) | 8.75 mm | 3.91 mm | 0.344 in | 0.433 in | 11 mm | 0.154 in | Automotive | 15 A | 1 kA | Blue | Requires Holder |
OptiFuse | ISO SAE | Fast Blow | 32 V | Blade Miniature (Low Profile) | 8.75 mm | 3.91 mm | 0.344 in | 0.433 in | 11 mm | 0.154 in | Automotive | 10 A | 1 kA | Red | Requires Holder |
OptiFuse | ISO SAE | Fast Blow | 32 V | Blade Miniature (Low Profile) | 8.75 mm | 3.91 mm | 0.344 in | 0.433 in | 11 mm | 0.154 in | Automotive | 7.5 A | 1 kA | Brown | Requires Holder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.91 | |
Description
General part information
ANS-I Series
25 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature (Low Profile)
