SL8802/04-50DN5-00

Active

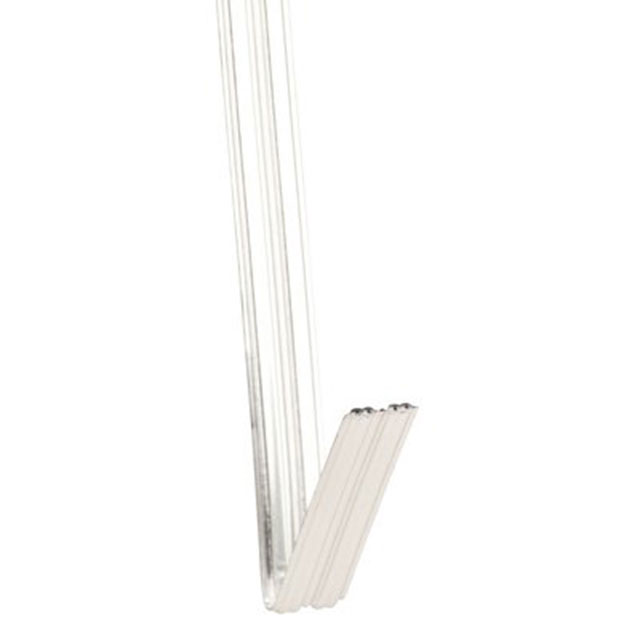

70010030149 SL8802/04-50DN5-00=TACBL,30AWG, 2PR, 2SLDGND,GPPG, AG, 1000FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCables & Accessories Selection Guide Datasheet

SL8802/04-50DN5-00

Active

70010030149 SL8802/04-50DN5-00=TACBL,30AWG, 2PR, 2SLDGND,GPPG, AG, 1000FT

Deep-Dive with AI

DocumentsCables & Accessories Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SL8802/04-50DN5-00	SL8802 Series

Cable Type	Flat Twin Axial	Flat Twin Axial
Conductor Material	Copper, Silver Coated	Copper, Tinned, Copper, Silver Coated
Conductor Strand	Solid	Solid
Features	Reversed, Straight, Opposite, Down	Reversed, Straight, Opposite, Down
Insulation Resistance	1 GOhms	1 GOhms
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Jacket Color	Silver	Silver
Length	152.4 mm, 228.6 mm, 76.2 m, 7.62 m, 177.7 mm, 203.2 mm, 304.8 mm, 15.24 m, 254 mm	7.62 - 304.8 m
Length	6 ", 9 in, 7 in, 8 in, 10 in	6 - 10 "
Length	0.5 '	0.5 '
Length	0.75 ft, 3000 ", 25 ft, 0.583 ft, 0.667 ft, 1 ft, 50 ft, 0.833 ft	0.583 - 6000 in
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length [x]	406.4 mm, 355.62 mm, 30.48 m, 279.4 mm	3.05 - 406.4 mm
Length [x]	1.33 ft, 1.17 ft, 100 ft, 0.917 ft	0.917 - 100 ft
Length [x]	11 "	11 "
Number of Conductors	4	4 - 8
Pitch [x]	2.37 mm	2.37 mm
Pitch [x]	0.093 in	0.093 in
Ratings	UL E42769	UL E42769
Ribbon Thickness	0.89 mm	0.89 mm
Ribbon Thickness	0.035 in	0.035 in
Ribbon Width	0.266 in	0.215 - 0.627 in
Ribbon Width	6.75 mm	5.45 - 15.93 mm
Shielding	Shielded	Shielded
Spool Size	500 '	500 '
Spool Size	152.4 m	152.4 m
Voltage	150 V	150 V
Wire Gauge	30 AWG	30 AWG

SL8802 Series

3M TWIN AXIAL CABLE, SL8802 SERIES, SL8802/08-21DN5-00

Part	Cable Type	Jacket (Insulation) Material	Ribbon Width	Ribbon Width	Shielding	Wire Gauge	Conductor Material	Ribbon Thickness	Ribbon Thickness	Number of Conductors	Ratings	Pitch [x]	Pitch [x]	Jacket Color	Conductor Strand	Length	Length	Voltage	Insulation Resistance	Length	Length	Features	Length [x]	Length [x]	Spool Size	Spool Size	Length	Length [x]
3M SL8802/08-21DN5-00	Flat Twin Axial	Polyolefin (PO)	15.93 mm	0.627 in	Shielded	30 AWG	Copper, Tinned	0.89 mm	0.035 in	8	UL E42769	2.37 mm	0.093 in	Silver	Solid	152.4 m	6000 in	150 V	1 GOhms
3M SL8802/04-50DN5-00	Flat Twin Axial	Polyolefin (PO)	6.75 mm	0.266 in	Shielded	30 AWG	Copper, Silver Coated	0.89 mm	0.035 in	4	UL E42769	2.37 mm	0.093 in	Silver	Solid	7.62 m, 15.24 m, 76.2 m, 152.4 mm, 177.7 mm, 203.2 mm, 228.6 mm, 254 mm, 304.8 mm	0.583 ft, 0.667 ft, 0.75 ft, 0.833 ft, 1 ft, 25 ft, 50 ft, 3000 "	150 V	1 GOhms	6 ", 7 in, 8 in, 9 in, 10 in	0.5 '	Down, Opposite, Reversed, Straight	30.48 m, 279.4 mm, 355.62 mm, 406.4 mm	0.917 ft, 1.17 ft, 1.33 ft, 100 ft	500 '	152.4 m	Enter Number of Feet in Order Quantity	11 "
3M SL8802/08-20DN5-00	Flat Twin Axial	Polyolefin (PO)	15.93 mm	0.627 in	Shielded	30 AWG	Copper, Silver Coated	0.89 mm	0.035 in	8	UL E42769	2.37 mm	0.093 in	Silver	Solid	15.24 m, 152.4 mm, 177.7 mm, 203.2 mm, 228.6 mm, 254 mm, 304.8 mm	0.583 ft, 0.667 ft, 0.75 ft, 0.833 ft, 1 ft, 50 ft	150 V	1 GOhms	6 ", 7 in, 8 in, 9 in, 10 in	0.5 '	Down, Opposite, Reversed, Straight	30.48 m, 279.4 mm, 355.62 mm, 406.4 mm	0.917 ft, 1.17 ft, 1.33 ft, 100 ft				11 "
3M SL8802/04-11DN5-00	Flat Twin Axial	Polyolefin (PO)	5.45 mm	0.215 in	Shielded	30 AWG	Copper, Tinned	0.89 mm	0.035 in	4	UL E42769	2.37 mm	0.093 in	Silver	Solid	7.62 m, 15.24 m	25 ft, 50 ft	150 V	1 GOhms				3.05 m	10 ft
