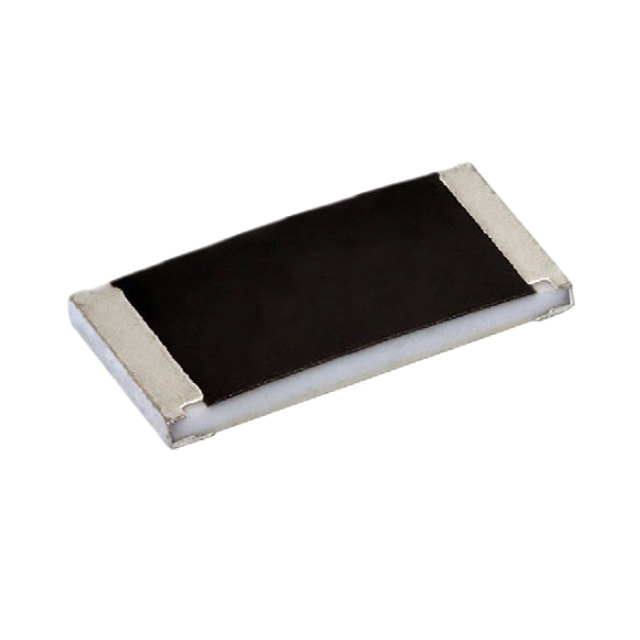

CRCW0402127RFKEDHP

Active

Vishay Dale

RES SMD 127 OHM 1% 1/5W 0402

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CRCW0402127RFKEDHP

Active

Vishay Dale

RES SMD 127 OHM 1% 1/5W 0402

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CRCW0402127RFKEDHP	CRCW0402 Series

Composition	Thick Film	Thick Film
Features	Automotive AEC-Q200, Pulse Withstanding	Automotive AEC-Q200, Pulse Withstanding
Height - Seated (Max) [Max]	0.016 in	0.014 - 0.016 in
Height - Seated (Max) [Max]	0.4 mm	0.35 - 0.4 mm
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0402 (1005 Metric)	0402 (1005 Metric)
Power (Watts)	0.2 W	0.063 - 0.2 W
Power (Watts)	1/5	1/5
Power (Watts)	-	0.0625 W
Ratings	AEC-Q200	AEC-Q200
Resistance	127 Ohms	0 - 750000 kOhms
Size / Dimension [x]	1 mm	1 mm
Size / Dimension [x]	0.039 in	0.039 in
Size / Dimension [y]	0.02 in	0.02 in
Size / Dimension [y]	0.5 mm	0.5 mm
Supplier Device Package	0402	0402
Supplier Device Package	-	402
Temperature Coefficient	100 ppm/°C	50 - 200 ppm/°C
Tolerance	1 %	0.25 - 10 %
Tolerance	-	Jumper

CRCW0402 Series

RES SMD 16.9K OHM 1% 1/16W 0402

...

Part	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Number of Terminations	Ratings	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Composition	Package / Case	Tolerance	Power (Watts)
Vishay Dale CRCW040216K9FKTD	16.9 kOhms	155 °C	-55 °C	0.0625 W	0.063 W	Automotive AEC-Q200	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	100 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)	1 %
Vishay Dale CRCW0402390KJNEDC	390 kOhms	155 °C	-55 °C	0.0625 W	0.063 W		1 mm	0.02 in	0.5 mm	0.039 in	0402	2		200 ppm/°C	0.014 in	0.35 mm	Thick Film	0402 (1005 Metric)	5 %
Vishay Dale CRCW0402390RJNEDHP	390 Ohms	155 °C	-55 °C		0.2 W	Automotive AEC-Q200, Pulse Withstanding	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	200 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)	5 %	1/5
Vishay Dale CRCW04021K30DHEDP	1.3 kOhms	155 °C	-55 °C	0.0625 W	0.063 W	Automotive AEC-Q200	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	50 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)
Vishay Dale CRCW040224K3DKEDP	24.3 kOhms	155 °C	-55 °C	0.0625 W	0.063 W	Automotive AEC-Q200	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	100 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)
Vishay Dale CRCW0402866KFKED	866 kOhms	155 °C	-55 °C	0.0625 W	0.063 W	Automotive AEC-Q200	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	100 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)	1 %
Vishay Dale CRCW04021M91FKEDC	1.91 MOhms	155 °C	-55 °C	0.0625 W	0.063 W		1 mm	0.02 in	0.5 mm	0.039 in	0402	2		100 ppm/°C	0.014 in	0.35 mm	Thick Film	0402 (1005 Metric)	1 %
Vishay Dale CRCW040290K9FKED	90.9 kOhms	155 °C	-55 °C	0.0625 W	0.063 W	Automotive AEC-Q200	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	100 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)	1 %
Vishay Dale CRCW040218R0JNEDC	18 Ohms	155 °C	-55 °C	0.0625 W	0.063 W		1 mm	0.02 in	0.5 mm	0.039 in	0402	2		200 ppm/°C	0.014 in	0.35 mm	Thick Film	0402 (1005 Metric)	5 %
Vishay Dale CRCW04023M57FKED	3.57 MOhms	155 °C	-55 °C	0.0625 W	0.063 W	Automotive AEC-Q200	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	100 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)	1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.02

Description

General part information

CRCW0402 Series

127 Ohms ±1% 0.2W, 1/5W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film

Documents

Technical documentation and resources
