9578 0021000

Active

Belden Inc.

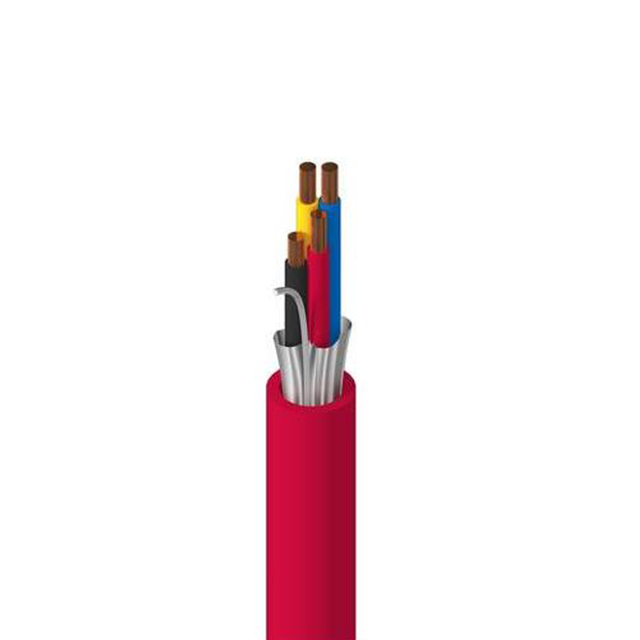

CABLE 4COND 18AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 18AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9578 0021000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	0.263 in
Jacket (Insulation) Diameter [diameter]	6.68 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket (Insulation) Material	Conductor Strand	Length	Length	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Usage	Wire Gauge	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Ratings	Number of Conductors	Jacket Color	Shield Coverage
Belden Inc. 9578 0021000	Poly-Vinyl Chloride (PVC)	Solid	1000 ft	304.8 m	Aluminum	0.94 mm	0.037 in	Multi-Conductor	Alarm Safety	18 AWG	Poly-Vinyl Chloride (PVC)	-40 °C	105 ░C	300 V	Copper Bare	0.263 in	6.68 mm	Foil	UL Style 2464	4	Red	100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.25

General part information

4 Conductor Multi-Conductor Cable Red 18 AWG Foil 1000.0' (304.8m)
