FUSED TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 10 MM², CLAMP, 10 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

2006-1611/1000-541

Active

WAGO Corporation

FUSED TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 10 MM², CLAMP, 10 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.33
		10	$ 16.63
		25	$ 16.06
		50	$ 15.48
		100	$ 15.02
		250	$ 14.73
		500	$ 14.44
Newark	Each	1	$ 27.45
		25	$ 26.03
		100	$ 24.50
		250	$ 23.09
		500	$ 21.44

Description

General part information

2006-161 Series

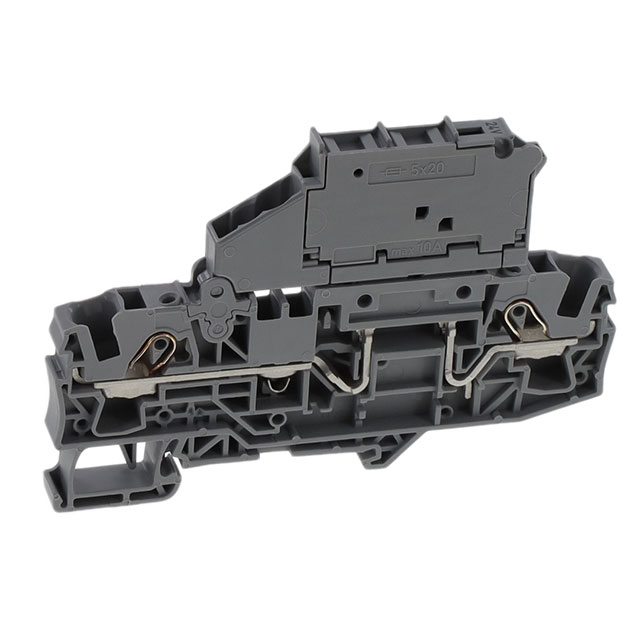

The 2006-1611/1000-541 is a 2-conductor gray DIN 35 rail-mount fuse disconnect Terminal Block with pivoting fuse holder. It is made with the polyamide 66 (PA 66) insulator. It is suitable for use with the 5 x 20mm miniature metric fuse and 12 to 30V, with blown fuse indication by led. The TOPJOB® S terminal block features nominal voltage and current are given by the LED or fuse, horizontal design and center/side marking.

Specification	2006-1611/1000-541	2006-161 Series

Color	Gray	Gray
Current - IEC	10 A	10 A
Disconnect Type	Fuse	Fuse
Features	LED Indicator	LED Indicator
Fuse Type [x]	5 mm	5 mm
Fuse Type [y]	20 mm	20 mm
Material - Insulation	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Number of Levels	1	1
Number of Positions	2	2
Stripping Length [Max]	15 mm	15 mm
Stripping Length [Min]	13 mm	13 mm
Terminal - Width	7.5 mm	7.5 mm
Termination Style	Push In, Spring	Push In, Spring
Type	Disconnect	Disconnect
Voltage - IEC	800 V	800 V
Wire Gauge or Range - AWG [Max]	14 AWG	14 AWG
Wire Gauge or Range - AWG [Min]	8 AWG	8 AWG
Wire Gauge or Range - mm² [Max]	10 mm²	10 mm²
Wire Gauge or Range - mm² [Min]	2.5 mm²	2.5 mm²

Part	Number of Positions	Number of Levels	Terminal - Width	Features	Fuse Type [y]	Fuse Type [x]	Current - IEC	Disconnect Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Termination Style	Stripping Length [Min]	Stripping Length [Max]	Color	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - IEC	Material - Insulation
WAGO Corporation 2006-1611/1000-541	2	1	7.5 mm	LED Indicator	20 mm	5 mm	10 A	Fuse	14 AWG	8 AWG	Disconnect	Push In, Spring	13 mm	15 mm	Gray	10 mm²	2.5 mm²	800 V	Polyamide (PA66), Nylon 6/6
