CD07AA-GY

Active

Hummel AG

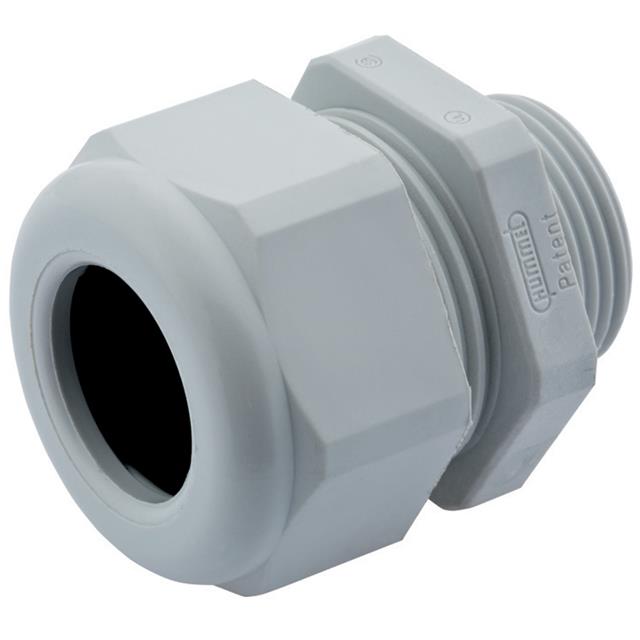

CABLE GLAND 3.05-6.5MM PG7

Search across all available documentation for this part.

Active

Hummel AG

CABLE GLAND 3.05-6.5MM PG7

Technical Specifications

Parameters and characteristics for this part

Specification	CD07AA-GY

Color	Gray
Ingress Protection	IP69K, IP68, NEMA 6
Material	Polyamide (PA66), Nylon 6/6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.256 "
Outside Cable Diameter (Max) [Max] [diameter]	6.5 mm
Outside Cable Diameter (Min) [diameter]	3.05 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.12 in
Panel Hole Size [diameter]	12.4 mm
Panel Hole Size [diameter]	0.49 in
Thread Length	7.87 mm
Thread Length	0.31 in
Thread Size	PG7
Type	Cable Gland

CABLE GLAND 3.05-6.5MM PG7

Part	Thread Size	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [diameter]	Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Thread Length	Thread Length	Color
Hummel AG CD07AA-GY	PG7	Polyamide (PA66), Nylon 6/6	0.12 in	3.05 mm	Cable Gland	IP68, IP69K, NEMA 6	100 °C	-40 °C	0.256 "	6.5 mm	12.4 mm	0.49 in	7.87 mm	0.31 in	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA66), Nylon 6/6 PG7 Gray
