TDC155K035NSE-F
ObsoleteCornell Dubilier Knowles
CAP TANT 1.5UF 10% 35V RADIAL
TDC155K035NSE-F
ObsoleteCornell Dubilier Knowles
CAP TANT 1.5UF 10% 35V RADIAL
Description
General part information
TDC155K035NSE-F

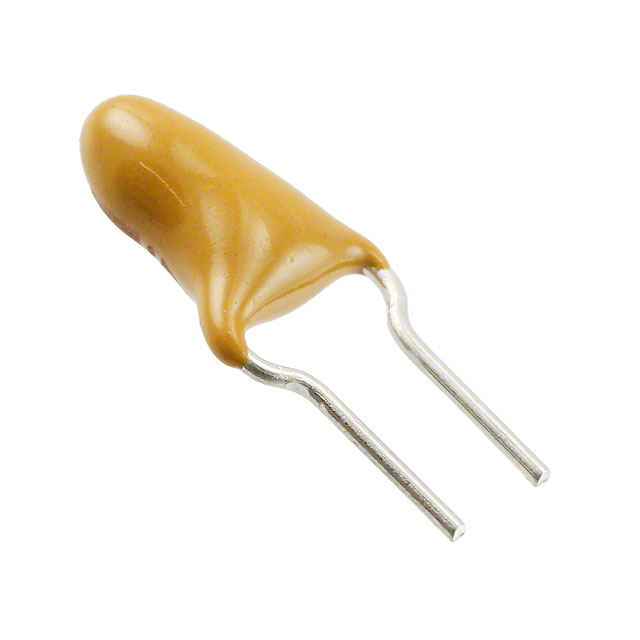

1.5 µF Conformal Coated Tantalum Capacitors 35 V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | TDC155K035NSE-F |
|---|---|
| Capacitance | 1.5 µF |
| Features | General Purpose |
| Height - Seated (Max) | 0.35 in |
| Lead Spacing | 0.125 in |
| Manufacturer Size Code | E |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Diameter | 0.175 in |
| Tolerance | 10 % |
| Type | Conformal Coated |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
