S4SM-0661509736-0A600H3S-00001
ActiveSeoul Semiconductor

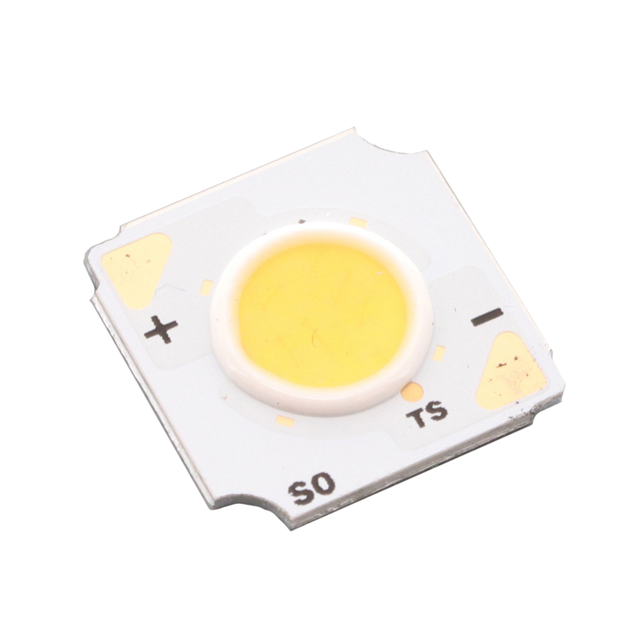

LED COB SUNLIKE COOL WH SQ 5000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S4SM-0661509736-0A600H3S-00001
ActiveSeoul Semiconductor
LED COB SUNLIKE COOL WH SQ 5000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S4SM-0661509736-0A600H3S-00001 |
|---|---|
| Color | Cool, White |
| Configuration | Square |
| CRI (Color Rendering Index) | 97 |
| Current - Max [Max] | 260 mA |
| Current - Test | 170 mA |
| Height [z] | 1.45 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 6 mm Dia |
| Lumens/Watt @ Current - Test | 95 lm/W |
| Luminous Flux @ Current/Temperature | 585 lm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) | 36.1 V |
S4SM Series
| Part | Color | Height [z] | Configuration | Lens Type | CCT (K) | Current - Max [Max] | Viewing Angle | Current - Test | CRI (Color Rendering Index) | Light Emitting Surface (LES) [diameter] | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Type | Temperature - Test | Size / Dimension [y] | Size / Dimension [x] | Luminous Flux @ Current/Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Seoul Semiconductor | Warm White | 1.45 mm | Square | Flat | 2700 K | 580 mA | 115 ° | 290 mA | 97 | 9.8 mm | 34.8 V | 89 lm/W | Chip On Board (COB) | 85 °C | |||
Seoul Semiconductor | Cool White | 1.45 mm | Square | Flat | 860 mA | 115 ° | 430 mA | 97 | 14.5 mm | 35 V | 108 lm/W | Chip On Board (COB) | 85 °C | 19 mm | 19 mm | 1620 lm | |
Seoul Semiconductor | Warm White | 1.45 mm | Square | Flat | 2700 K | 1.44 A | 115 ° | 720 mA | 97 | 14.5 mm | 35.2 V | 90 lm/W | Chip On Board (COB) | 85 °C | 19 mm | 19 mm | 2275 lm |
Seoul Semiconductor | Cool White | 1.45 mm | Square | Flat | 260 mA | 115 ° | 170 mA | 97 | 6 mm Dia | 36.1 V | 95 lm/W | Chip On Board (COB) | 85 °C | 585 lm | |||
Seoul Semiconductor | Neutral White | 1.45 mm | Square | Flat | 4000 K | 860 mA | 115 ° | 430 mA | 97 | 14.5 mm | 35 V | 103 lm/W | Chip On Board (COB) | 85 °C | 19 mm | 19 mm | 1550 lm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.87 | |
| 10 | $ 2.74 | |||
| 90 | $ 2.30 | |||
| 180 | $ 2.55 | |||
| 540 | $ 2.37 | |||
| 1080 | $ 2.30 | |||
Description
General part information
S4SM Series
LED Lighting COBs Engines Modules Chip On Board (COB) SunLike White, Cool Square
