90340

Unknown

Hartland Controls/Littelfuse

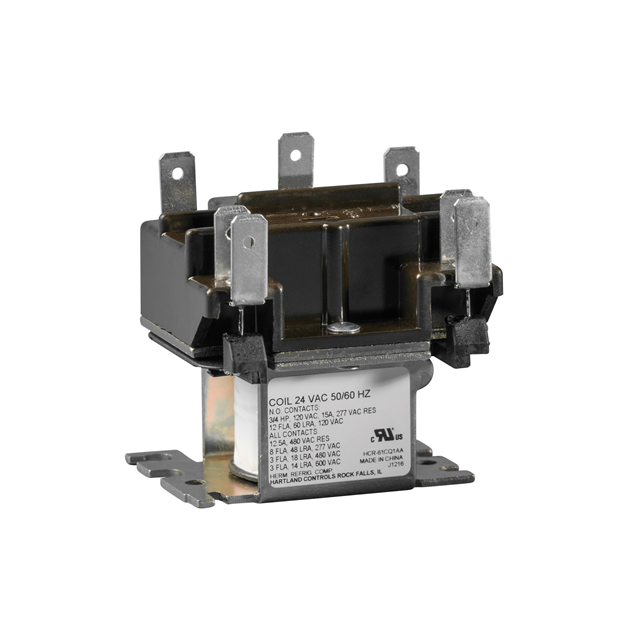

RELAY GEN PURPOSE DPDT 15A 24V

Search across all available documentation for this part.

Unknown

Hartland Controls/Littelfuse

RELAY GEN PURPOSE DPDT 15A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE SPST 18A 240V

Part	Contact Rating (Current)	Must Release Voltage	Mounting Type	Coil Voltage	Termination Style	Must Operate Voltage	Contact Form	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type
Hartland Controls/Littelfuse 90292	18 A	48 VAC	Chassis Mount	240 VAC	Quick Connect - 0.250" (6.3mm)	176 VAC	SPST-NO (DM) (1 Form X)	General Purpose	65 °C	-40 °C	Non Latching
Hartland Controls/Littelfuse 90340	15 A	4.8 VAC	Chassis Mount	24 VAC	Quick Connect - 0.250" (6.3mm)		DPDT (2 Form C)	General Purpose	65 °C	-40 °C	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.55

General part information

General Purpose Relay DPDT (2 Form C) 24VAC Coil Chassis Mount

Technical documentation and resources
