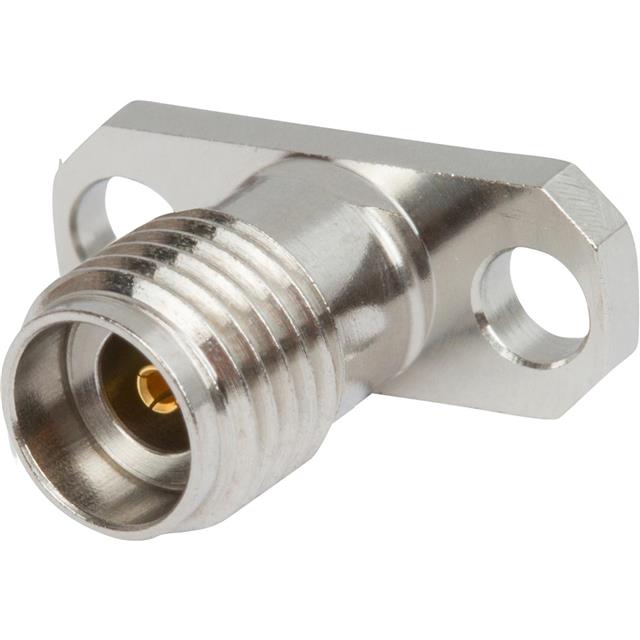

1521-60193
ActiveAmphenol SV Microwave
2.92MM FEMALE FIELD REPLACEABLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1521-60193
ActiveAmphenol SV Microwave
2.92MM FEMALE FIELD REPLACEABLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1521-60193 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 2.92 mm |
| Connector Type | Female Socket, Jack |
| Contact Termination | Compression |
| Dielectric Material | Polyetherimide (PEI) |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 43.65 | |
Description
General part information
1521-60193
2.92mm Connector Jack, Female Socket 50 Ohms Surface Mount Compression
