Technical Specifications
Parameters and characteristics commom to parts in this series

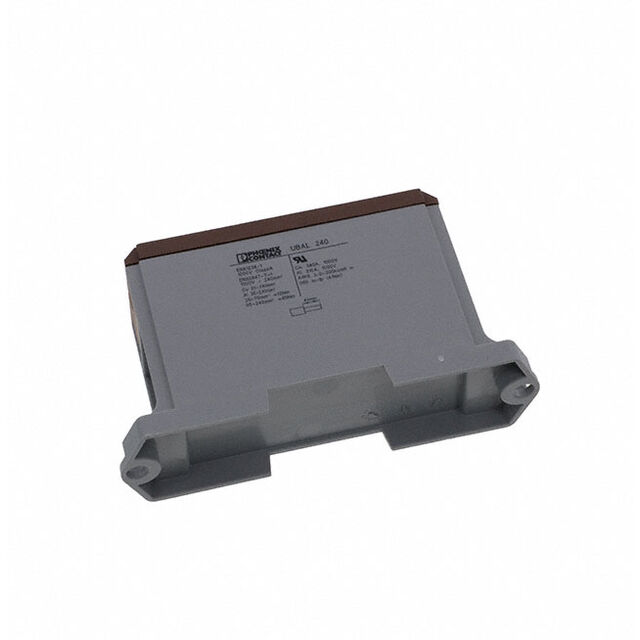

| Specification | 1086509 | UBAL Series |
|---|---|---|
| Color | Brown | Gray, Green, Yellow, Brown, Black, Blue |
| Current - IEC | 380 A | 145 - 380 A |
| For Use With/Related Products | - | CLIPLINE UBAL Series |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Levels | 1 | 1 |
| Number of Positions | 2 | 2 |
| Stripping Length | 43 mm | 23 - 43 mm |
| Terminal - Width [y] | 37.5 mm | 19.2 - 37.5 mm |
| Termination Style | Screw | Screw |
| Type | Feed Through | Feed Through, Cover |
| Voltage - IEC | 1 kV | 1 kV |
| Wire Gauge or Range - AWG [Max] | 300 AWG | 4 - 300 AWG |
| Wire Gauge or Range - AWG [Min] | 3 aught AWG | 1 - 4 aught AWG |
| Wire Gauge or Range - mm² [Max] | 240 mm² | 50 - 240 mm² |
| Wire Gauge or Range - mm² [Min] | 35 mm² | 6 - 35 mm² |
UBAL Series
DIN Rail Terminal Blocks UBAL 95 FE Term Block;1POS;220A
| Part | Terminal - Width [y] | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Type | Termination Style | Number of Positions | Current - IEC | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Voltage - IEC | Stripping Length | Color | Number of Levels | Material - Insulation | Material Flammability Rating | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1086505 | 37.5 mm | 35 mm² | 240 mm² | Feed Through | Screw | 2 | 380 A | 300 AWG | 3 aught AWG | 1 kV | 43 mm | Gray | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |
Phoenix Contact 1086507 | 37.5 mm | 35 mm² | 240 mm² | Feed Through | Screw | 2 | 380 A | 300 AWG | 3 aught AWG | 1 kV | 43 mm | Green | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |
Phoenix Contact 1086480 | 25.1 mm | Feed Through | Screw | 2 | 220 A | 4 AWG | 4 aught AWG | 1 kV | 27 mm | Yellow | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |||
Phoenix Contact 1090037 | Cover | Yellow | CLIPLINE UBAL Series | |||||||||||||
Phoenix Contact 1086479 | 25.1 mm | Feed Through | Screw | 2 | 220 A | 4 AWG | 4 aught AWG | 1 kV | 27 mm | Brown | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |||
Phoenix Contact 1086470 | 19.2 mm | 6 mm² | 50 mm² | Feed Through | Screw | 2 | 145 A | 6 AWG | 1 aught AWG | 1 kV | 23 mm | Brown | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |
Phoenix Contact 1086468 | 19.2 mm | 6 mm² | 50 mm² | Feed Through | Screw | 2 | 145 A | 6 AWG | 1 aught AWG | 1 kV | 23 mm | Green | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |
Phoenix Contact 1086473 | Cover | Yellow | CLIPLINE UBAL Series | |||||||||||||
Phoenix Contact 1086508 | 37.5 mm | 35 mm² | 240 mm² | Feed Through | Screw | 2 | 380 A | 300 AWG | 3 aught AWG | 1 kV | 43 mm | Black | 1 | Nylon, Polyamide (PA) | UL94 V-0 | |
Phoenix Contact 1086510 | 37.5 mm | 35 mm² | 240 mm² | Feed Through | Screw | 2 | 380 A | 300 AWG | 3 aught AWG | 1 kV | 43 mm | Yellow | 1 | Nylon, Polyamide (PA) | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UBAL Series
DIN Rail Terminal Blocks UBAL 95 FE Term Block;1POS;220A
