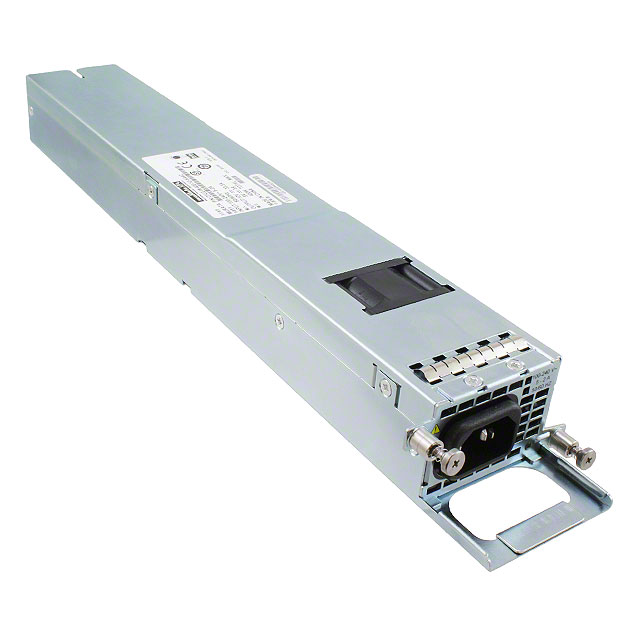

D1U2-W-400-12-HA4C
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 12V 400W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D1U2-W-400-12-HA4C
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 12V 400W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D1U2-W-400-12-HA4C |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, TUV, CE, cCSAus |
| Current - Output 1 | 33.3 A |
| Efficiency | 85 % |
| Features | I2C Interface, Hot Swappable, Load Sharing, Standby Output, Remote Sense, PFC, Universal Input |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Size / Dimension [x] | 347.2 mm |
| Size / Dimension [x] | 13.67 in |
| Size / Dimension [y] | 54.5 mm |
| Size / Dimension [y] | 2.15 " |
| Size / Dimension [z] | 1.58 " |
| Size / Dimension [z] | 40.2 mm |
| Type | Front End |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 50 | $ 324.12 | |
D1U2 Series
AC/DC CONVERTER 12V 400W
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Features | Mounting Type | Voltage - Output 1 | Type | Applications | Number of Outputs | Efficiency | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. D1U2-W-400-12-HA4C | 90 VAC | 264 VAC | 3000 V | 54.5 mm | 2.15 " | 1.58 " | 347.2 mm | 40.2 mm | 13.67 in | CB, cCSAus, CE, TUV | Hot Swappable, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Rack Mount | 12 V | Front End | ITE (Commercial) | 1 | 85 % | 33.3 A |
Description
General part information
D1U2 Series
Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
Documents
Technical documentation and resources
