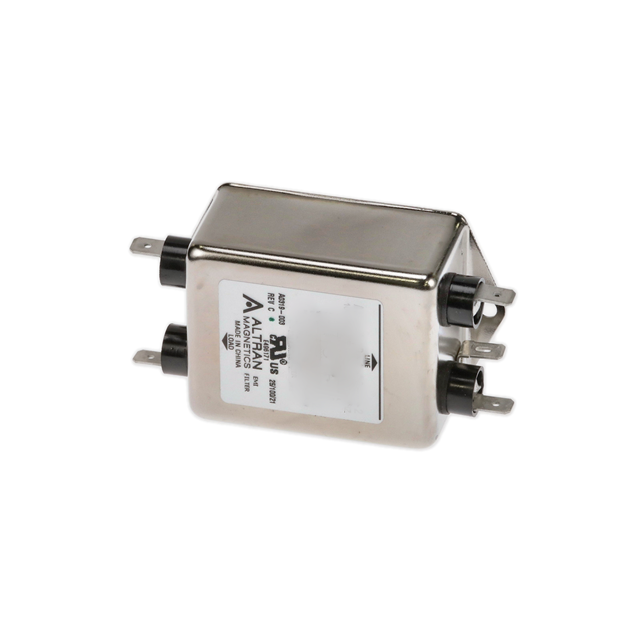

AMI-M11D-1-20-B-1
ActiveAltran Magnetics, LLC
LINE FILTER 250VAC 20A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMI-M11D-1-20-B-1 |
|---|---|
| Applications | General Purpose |
| Configuration | Single Stage |
| Current | 20 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 540 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.80 | |
| 10 | $ 15.33 | |||
| 25 | $ 14.14 | |||
| 50 | $ 13.30 | |||
| 100 | $ 12.50 | |||
| 250 | $ 11.53 | |||
| 500 | $ 11.25 | |||
Description
General part information
AMI-M11D-1-20-B-1
Single Phase EMC/EMI Line Filter 20 A 250V 50/60Hz Single Stage Quick Connect
