GFTPX-9

Active

Curtis Industries

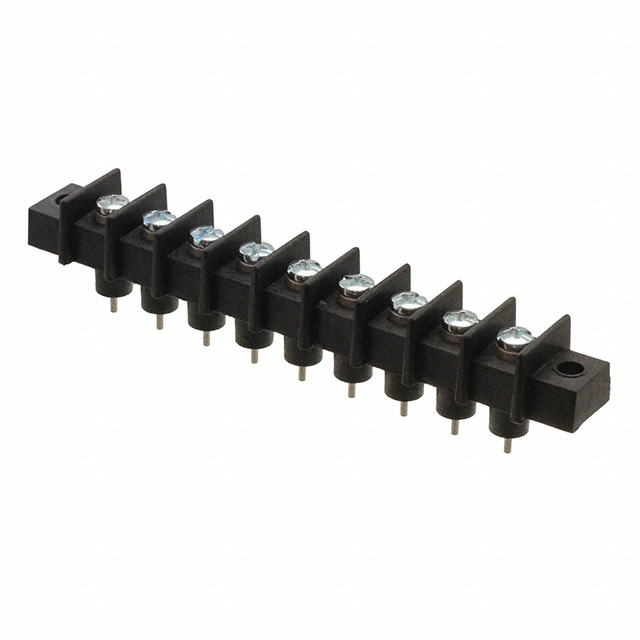

CONN BARRIER STRIP 9CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GFTPX-9

Active

Curtis Industries

CONN BARRIER STRIP 9CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GFTPX-9	GFTPX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin, Insulated	PC Pin, Insulated
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	-	1 - 24
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	9	2 - 21
Number of Wire Entries	-	1 - 23
Operating Temperature	110 °C	110 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

GFTPX Series

CONN BARRIER STRIP 5CIRC 0.438"

Part	Material - Insulation	Number of Circuits	Operating Temperature	Features	Terminal Block Type	Number of Wire Entries	Barrier Type	Wire Gauge [Min]	Wire Gauge [Max]	Material Flammability Rating	Top Termination	Number of Rows	Pitch [x]	Pitch [x]	Bottom Termination	Mounting Type	Color	Current Rating (Amps)	Terminal Screw Material	Number of Wire Entries [custom]
Curtis Industries GFTPX-5	Polyphenylene Oxide (PPO)	5	110 °C	Flange	Barrier Block	5	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-2	Polyphenylene Oxide (PPO)	2	110 °C	Flange	Barrier Block	2	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-6	Polyphenylene Oxide (PPO)	6	110 °C	Flange	Barrier Block	6	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-24	Polyphenylene Oxide (PPO)	24	110 °C	Flange	Barrier Block		2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-13	Polyphenylene Oxide (PPO)	13	110 °C	Flange	Barrier Block	13	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-23	Polyphenylene Oxide (PPO)	23	110 °C	Flange	Barrier Block		2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel	23
Curtis Industries GFTPX-20	Polyphenylene Oxide (PPO)	20	110 °C	Flange	Barrier Block	20	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-21	Polyphenylene Oxide (PPO)	21	110 °C	Flange	Barrier Block	21	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-16	Polyphenylene Oxide (PPO)	16	110 °C	Flange	Barrier Block	16	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-1	Polyphenylene Oxide (PPO)	1	110 °C	Flange	Barrier Block		2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1			PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.80
		10	$ 6.86

Description

General part information

GFTPX Series

9 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
