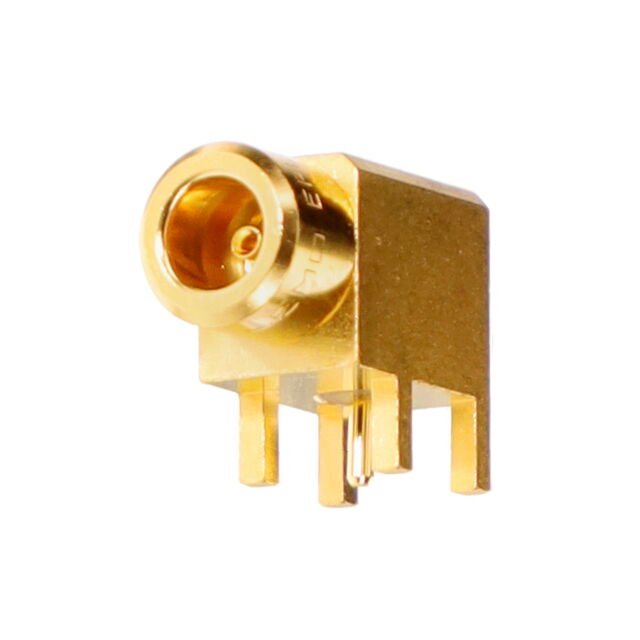

EPL.01.250.DLN

Active

LEMO

CONN MINI COAX RCP R/A 50OHM PCB

Search across all available documentation for this part.

Active

LEMO

CONN MINI COAX RCP R/A 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

CONN MINI COAX RCP R/A 50OHM PCB

Part	Housing Color	Dielectric Material	Connector Type	Voltage Rating	Mating Cycles	Impedance	Center Contact Material	Connector Style	Center Contact Plating	Fastening Type	Ingress Protection	Mounting Type	Contact Termination	Shield Termination	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Number of Ports
LEMO EPL.01.250.DLN	Gold	Polyetheretherketone (PEEK)	Female Socket, Receptacle	300 VDC	1000	50 Ohms	Bronze	Miniature Coaxial	Gold	Push-Pull	IP50	Through Hole, Right Angle	Solder	Solder	Gold	230 °C	-55 °C	Brass	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Miniature Coaxial Connector Receptacle, Female Socket 50 Ohms Through Hole, Right Angle Solder
