WM010I,AL
ActiveSerpac

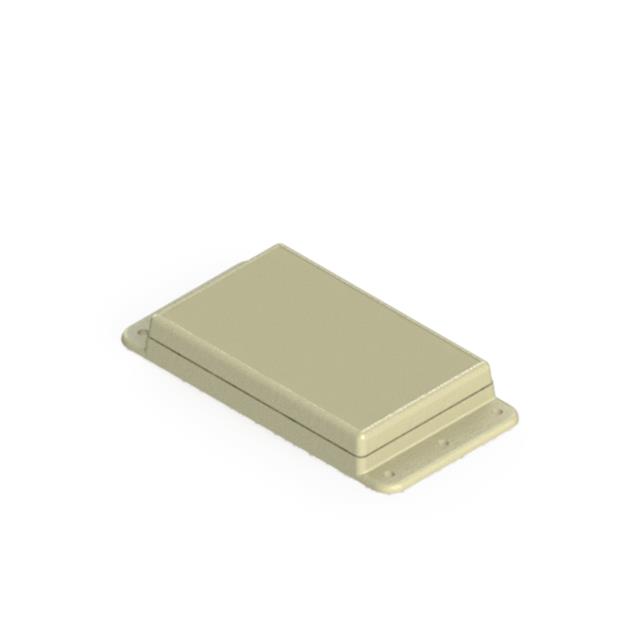

BOX ABS ALMOND 3.6"L X 2.25"W
Deep-Dive with AI
Search across all available documentation for this part.
WM010I,AL
ActiveSerpac
BOX ABS ALMOND 3.6"L X 2.25"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WM010I,AL |
|---|---|
| Area (L x W) [custom] | 52.3 cm˛ |
| Area (L x W) [custom] | 8.1 in˛ |
| Color | Almond |
| Container Type | Box |
| Design | Cover Included |
| Features | PCB Supports, Wall Mount, Mounting Flange |
| Height [z] | 15.24 mm |
| Height [z] | 0.6 in |
| Material | Plastic, ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | IP40, NEMA 1 |
| Size / Dimension [x] | 91.44 mm |
| Size / Dimension [x] | 3.6 in |
| Size / Dimension [y] | 57.15 mm |
| Size / Dimension [y] | 2.25 in |
| Thickness | 2.54 mm |
| Thickness | 0.1 in |
| Weight | 0.086 lb |
| Weight | 39.01 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.13 | |
Description
General part information
WM010I,AL
Box Plastic, ABS Almond Cover Included 3.600" L x 2.250" W (91.44mm x 57.15mm) X 0.600" (15.24mm)
Documents
Technical documentation and resources
No documents available
