XPLAWT-02-0000-000LV30F5

Active

Cree LED

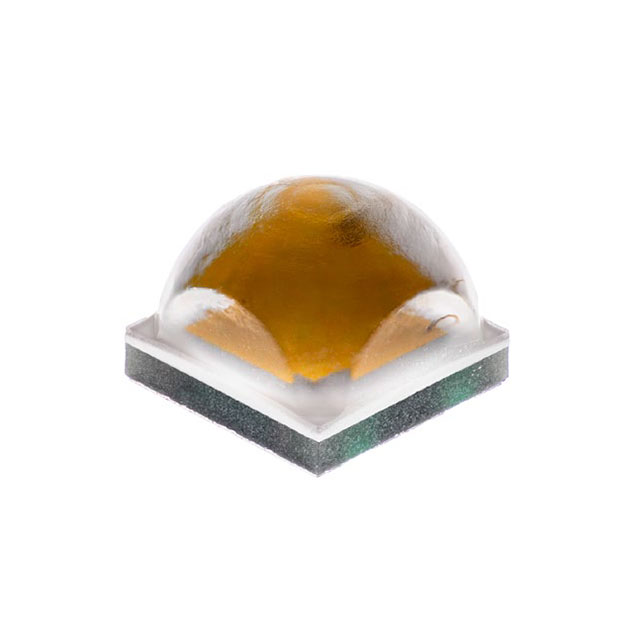

LED XLAMP NEUTRAL WHT 4250K 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPLAWT-02-0000-000LV30F5

Active

Cree LED

LED XLAMP NEUTRAL WHT 4250K 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 4.31
		500	$ 4.04
		1250	$ 3.72

Description

General part information

XPLAWT Series

LED Lighting XLamp® XP-L White, Neutral 4250K 2.95V 1.05A 125° 1414 (3535 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XPLAWT-02-0000-000LV30F5	XPLAWT Series

CCT (K)	-	2700 - 6500 K
Color	Neutral, White	Neutral, White, Warm, Cool
CRI (Color Rendering Index)	-	70 - 90
Current - Max [Max]	3 A	3 A
Current - Test	1.05 A	1.05 A
Flux @ 25°C, Current - Test	-	334 - 491 lm
Flux @ 85°C, Current - Test	430 lm	250 - 490 lm
Flux @ 85°C, Current - Test	-	380lm ~ 400lm
Flux @ 85°C, Current - Test [Max]	440 lm	240 - 440 lm
Flux @ 85°C, Current - Test [Min]	420 lm	220 - 420 lm
Height - Seated (Max) [Max] [z]	2.81 mm	1.13 - 2.81 mm
Height - Seated (Max) [Max] [z]	0.111 in	0.044 - 0.111 in
Lumens/Watt @ Current - Test	139 lm/W	74 - 174 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Supplier Device Package	-	1414
Thermal Resistance of Package	2.5 °C/W	2.2 - 2.5 °C/W
Thermal Resistance of Package	-	0.5 °C/W
Viewing Angle	125 °	115 - 125 °
Voltage - Forward (Vf) (Typ)	2.95 V	2.79 - 2.95 V

XPLAWT Series

LED XLAMP NEUTRAL WHT 4500K 2SMD

...

Part	Current - Test	Color	Thermal Resistance of Package	Flux @ 85°C, Current - Test	Lumens/Watt @ Current - Test	Viewing Angle	Current - Max [Max]	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	CRI (Color Rendering Index)	CCT (K)	Supplier Device Package	Thermal Resistance of Package [custom]	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]
Cree LED XPLAWT-00-0000-000LV20E4	1.05 A	Neutral, White	2.5 °C/W	410 lm	132 lm/W	125 °	3 A	3535 Metric	1414	2.95 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount
Cree LED XPLAWT-02-0000-000LV20E6	1.05 A	Warm, White	2.5 °C/W	410 lm	132 lm/W	125 °	3 A	3535 Metric	1414	2.95 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount	80	3500 K
Cree LED XPLAWT-00-0000-000BV50Z5	1.05 A	Neutral, White	2.2 °C/W	470 lm	160 lm/W	125 °	3 A	3535 Metric	1414	2.79 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount	70	4000 K	1414
Cree LED XPLAWT-00-0000-000BW20F5	1.05 A	Neutral, White			174 lm/W	125 °	3 A	3535 Metric	1414	2.79 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount	70		1414	0.5 °C/W
Cree LED XPLAWT-02-0000-0000V3050	1.05 A	Cool, White	2.5 °C/W	430 lm	139 lm/W	125 °	3 A	3535 Metric	1414	2.95 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount					440 lm	420 lm
Cree LED XPLAWT-H0-0000-000UU30E7	1.05 A	Warm, White		330 lm	113 lm/W	115 °	3 A	3535 Metric	1414	2.79 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1.13 mm	0.044 "	Surface Mount	90		1414	0.5 °C/W
Cree LED XPLAWT-H0-0000-000UU20F8	1.05 A	Warm, White		310 lm	106 lm/W	115 °	3 A	3535 Metric	1414	2.79 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1.13 mm	0.044 "	Surface Mount	90	2850 K	1414	0.5 °C/W	320 lm	300 lm
Cree LED XPLAWT-00-0000-0000V6051	1.05 A	Cool, White	2.2 °C/W	490 lm	158 lm/W	125 °	3 A	3535 Metric	1414	2.95 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount
Cree LED XPLAWT-00-0000-000LV50Z5	1.05 A	Neutral, White		470 lm	160 lm/W	125 °	3 A	3535 Metric	1414	2.79 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount		4000 K	1414	0.5 °C/W
Cree LED XPLAWT-00-0000-000UT60E7	1.05 A	Warm, White	2.5 °C/W	290 lm	94 lm/W	125 °	3 A	3535 Metric	1414	2.95 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount	90				300 lm	280 lm
