M3TEK-2606R
Active3M
IDC CABLE - MSD26K/MC26M/MCE26K
Deep-Dive with AI
Search across all available documentation for this part.
M3TEK-2606R
Active3M
IDC CABLE - MSD26K/MC26M/MCE26K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3TEK-2606R | M3TEK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Connector Type | Socket to Card Edge | Socket to Card Edge |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length | 152.4 mm | 152.4 mm |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 1.5 - 3 ft |
| Length | - | 457.2 - 914.4 mm |
| Number of Positions | 26 | 10 - 26 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3TEK Series
IDC CABLE - MSD10K/MC10M/MCE10K
| Part | Pitch - Cable | Pitch - Cable | Number of Rows | Shielding | Cable Termination | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Pitch - Connector | Pitch - Connector | Number of Positions | Features | Contact Finish | Length [x] | Length [x] | Color | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.05 " | 1.27 mm | 2 | Unshielded | IDC | 0.76 Ám | 30 Áin | Socket to Card Edge | 0.1 in | 2.54 mm | 10 | Polarizing Key | Gold | 3 ft | 914.4 mm | Multiple, Ribbon | ||||
0.05 " | 1.27 mm | 2 | Unshielded | IDC | 0.76 Ám | 30 Áin | Socket to Card Edge | 0.1 in | 2.54 mm | 10 | Polarizing Key | Gold | 152.4 mm | 6 " | 0.5 ' | ||||
0.05 " | 1.27 mm | 2 | Unshielded | IDC | 0.76 Ám | 30 Áin | Socket to Card Edge | 0.1 in | 2.54 mm | 10 | Polarizing Key | Gold | 1.5 ft | 457.2 mm | Multiple, Ribbon | ||||
0.05 " | 1.27 mm | 2 | Unshielded | IDC | 0.76 Ám | 30 Áin | Socket to Card Edge | 0.1 in | 2.54 mm | 10 | Polarizing Key | Gold | 1.5 ft | 457.2 mm | |||||
0.05 " | 1.27 mm | 2 | Unshielded | IDC | 0.76 Ám | 30 Áin | Socket to Card Edge | 0.1 in | 2.54 mm | 26 | Polarizing Key | Gold | Multiple, Ribbon | 152.4 mm | 6 " | 0.5 ' |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M3TEK Series

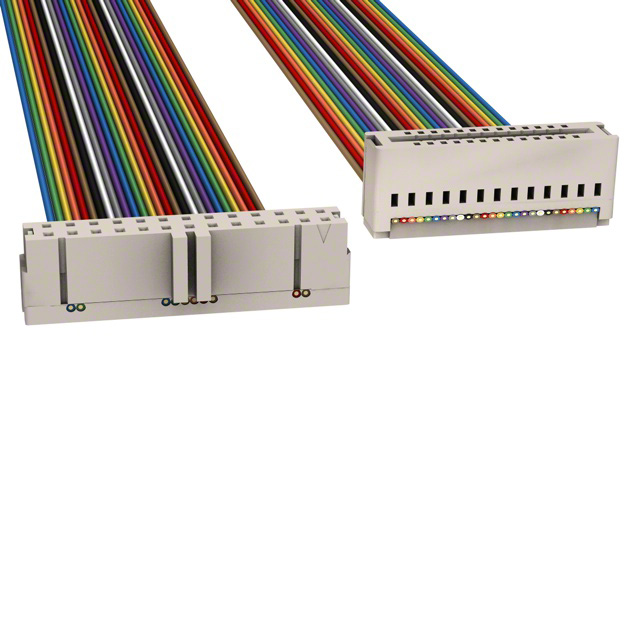

26 Position Cable Assembly Rectangular Socket to Card Edge 0.500' (152.40mm, 6.00")
