NHD-240128WG-BTMI-VZ#
ActiveNewhaven Display Intl
LCD MOD GRAPH 240X128 WH TRANSM
Deep-Dive with AI
Search across all available documentation for this part.
NHD-240128WG-BTMI-VZ#
ActiveNewhaven Display Intl
LCD MOD GRAPH 240X128 WH TRANSM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-240128WG-BTMI-VZ# |
|---|---|
| Background Color | Blue |
| Background Color | White |
| Backlight | LED - White |
| Controller Type | RA6963 |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch [x] | 0.45 mm |
| Dot Pitch [y] | 0.45 mm |
| Dot Pixels [x] | 240 pixels |
| Dot Pixels [y] | 128 |
| Dot Size [y] | 0.43 mm |
| Dot Size [z] | 0.43 mm |
| Graphics Color | White, Blue |
| Interface | Parallel, 8-Bit |
| Viewing Area [x] | 114 mm |
| Viewing Area [y] | 64 mm |
NHD-240128 Series
| Part | Background Color | Interface | Dot Pitch [x] | Dot Pitch [y] | Backlight | Controller Type | Dot Pixels [x] | Dot Pixels [y] | Dot Size [z] | Dot Size [y] | Display Mode | Display Type | Graphics Color | Viewing Area [y] | Viewing Area [x] | Viewing Area [z] | Dot Size [x] | Background Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Newhaven Display Intl | Gray | Parallel 8-Bit | 0.45 mm | 0.45 mm | LED - White | RA6963 | 240 pixels | 128 | 0.43 mm | 0.43 mm | Transflective | STN - Super-Twisted Nematic | Blue | 64 mm | 114 mm | |||
Newhaven Display Intl | Parallel 8-Bit | 0.45 mm | 0.45 mm | CCFL | RA6963 | 240 pixels | 128 | 0.43 mm | 0.43 mm | Transflective | STN - Super-Twisted Nematic | 64 mm | 114 mm | |||||
Newhaven Display Intl | Blue | Parallel 8-Bit | 0.5 mm | 0.5 mm | LED - White | RA6963 | 240 pixels | 128 | 0.47 mm | Transmissive | STN - Super-Twisted Nematic | Blue White | 128 mm | 74 mm | 0.47 mm | White | ||
Newhaven Display Intl | Blue | Parallel 8-Bit | 0.27 mm | 0.27 mm | LED - White | 240 pixels | 128 | 0.25 mm | Transmissive | STN - Super-Twisted Nematic | White | 40 mm | 72 mm | 0.25 mm | ||||
Newhaven Display Intl | White | Parallel 8-Bit | 0.45 mm | 0.45 mm | LED - White | RA6963 | 240 pixels | 128 | 0.43 mm | 0.43 mm | Transflective | FSTN - Film Super-Twisted Nematic | Black | 64 mm | 114 mm | Black | ||
Newhaven Display Intl | Blue | Parallel 8-Bit | 0.27 mm | 0.27 mm | LED - White | 240 pixels | 128 | 0.25 mm | Transmissive | STN - Super-Twisted Nematic | White | 40 mm | 72 mm | 0.25 mm | ||||
Newhaven Display Intl | Parallel 8-Bit | 0.5 mm | 0.5 mm | CCFL | RA6963 | 240 pixels | 128 | 0.47 mm | Transmissive | FSTN - Film Super-Twisted Nematic | 75 mm | 129 mm | 0.47 mm | |||||
Newhaven Display Intl | Blue | Parallel 8-Bit | 0.45 mm | 0.45 mm | LED - White | RA6963 | 240 pixels | 128 | 0.43 mm | 0.43 mm | Transmissive | STN - Super-Twisted Nematic | Blue White | 64 mm | 114 mm | White | ||
Newhaven Display Intl | Blue | Parallel 8-Bit | 0.45 mm | 0.45 mm | LED - White | RA6963 | 240 pixels | 128 | 0.43 mm | 0.43 mm | Transmissive | STN - Super-Twisted Nematic | Blue White | 64 mm | 114 mm | White | ||
Newhaven Display Intl | White | Parallel 8-Bit | 0.5 mm | 0.5 mm | LED - White | RA6963 | 240 pixels | 128 | 0.47 mm | Transflective | FSTN - Film Super-Twisted Nematic | Black | 128 mm | 74 mm | 0.47 mm | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 82.59 | |
| 5 | $ 77.63 | |||
| 10 | $ 72.68 | |||
| 50 | $ 68.55 | |||
| 100 | $ 67.37 | |||
Description
General part information
NHD-240128 Series

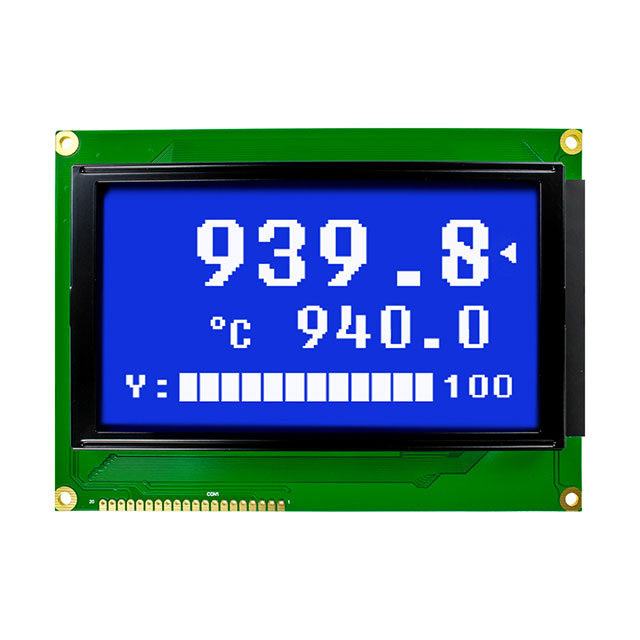

Graphic LCD Display Module Transmissive White (Blue - Inverted) STN - Super-Twisted Nematic Parallel, 8-Bit 240 x 128
