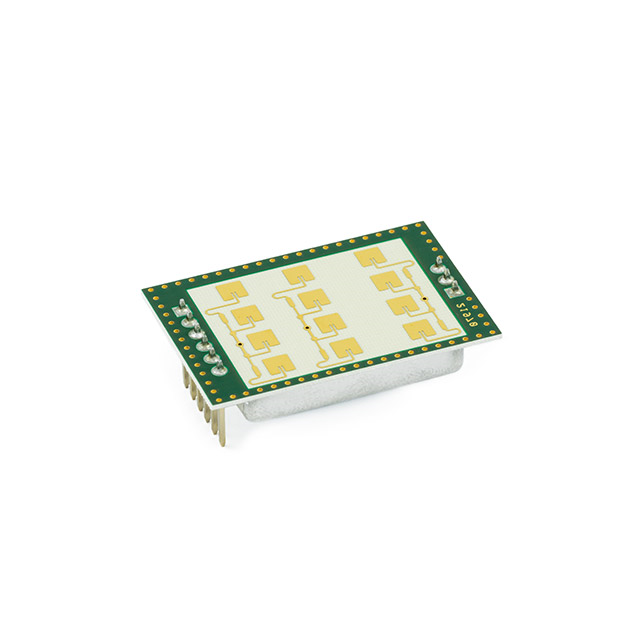

K-LC7-RFB-00H

Active

RFbeam Microwave GmbH

RF TXRX MOD RADAR CER PATCH TH

Search across all available documentation for this part.

Active

RFbeam Microwave GmbH

RF TXRX MOD RADAR CER PATCH TH

Technical Specifications

Parameters and characteristics for this part

RF TXRX MOD RADAR CER PATCH TH

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Antenna Type	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting	Current - Receiving	Power - Output	Package / Case	Sensitivity	Frequency [Max]	Frequency [Min]
RFbeam Microwave GmbH K-LC7-RFB-00H	5.5 V	3.2 V	Through Hole	Integrated, Ceramic Patch	Radar	85 °C	-20 C	90 mA	90 mA	12 dBm	9-DIP Module	-108 dBm	24.25 GHz	24 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Radar Transceiver Module 24GHz ~ 24.25GHz Integrated, Ceramic Patch Through Hole

Technical documentation and resources
