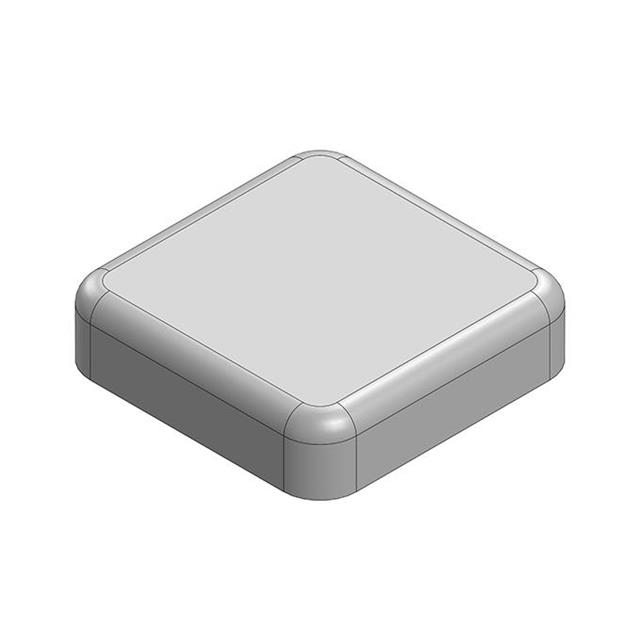

MS110-10S-NS

Active

Masach Tech Ltd.

RF SHIELD 0.433"X0.433" SOLDER

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.433"X0.433" SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.457X0.457" SNAP FIT

Part	Mounting Type	Height - Overall [z]	Height - Overall [z]	Ventilation	Width - Overall [y]	Width - Overall [y]	Length - Overall [x]	Length - Overall [x]	Type	Width - Overall [x]	Width - Overall [x]
Masach Tech Ltd. MS110-20C-NS	Snap Fit	2.8 mm	0.11 in	Non-Vented	0.457 "	11.6 mm	0.457 in	11.6 mm	Cover
Masach Tech Ltd. MS110-20S-NS	Solder	6 mm	0.236 in	Non-Vented			0.433 in	11 mm	Shield, 1-Piece	11 mm	0.433 in
Masach Tech Ltd. MS110-10F-NS	Solder	2.8 mm	0.11 in				0.433 in	11 mm	Frame	11 mm	0.433 in
Masach Tech Ltd. MS110-20F-NS	Solder	6 mm	0.236 in	Non-Vented			0.433 in	11 mm	Frame	11 mm	0.433 in
Masach Tech Ltd. MS110-20F	Solder	6 mm	0.236 in				0.433 in	11 mm	Frame	11 mm	0.433 in
Masach Tech Ltd. MS110-20C	Snap Fit	2.8 mm	0.11 in	Non-Vented	0.457 "	11.6 mm	0.457 in	11.6 mm	Cover
Masach Tech Ltd. MS110-10S-NS	Solder	2.8 mm	0.11 in	Non-Vented			0.433 in	11 mm	Shield, 1-Piece	11 mm	0.433 in
Masach Tech Ltd. MS110-10C-NS	Snap Fit	2.8 mm	0.11 in	Non-Vented	0.457 "	11.6 mm	0.457 in	11.6 mm	Cover
Masach Tech Ltd. MS110-10C	Snap Fit	2.8 mm	0.11 in	Non-Vented	0.457 "	11.6 mm	0.457 in	11.6 mm	Cover
Masach Tech Ltd. MS110-10F	Solder	2.8 mm	0.11 in				0.433 in	11 mm	Frame	11 mm	0.433 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Shield, 1-Piece 0.433" (11.00mm) X 0.433" (11.00mm) Non-Vented Solder
