TA4FS15
ActiveSwitchcraft Inc.

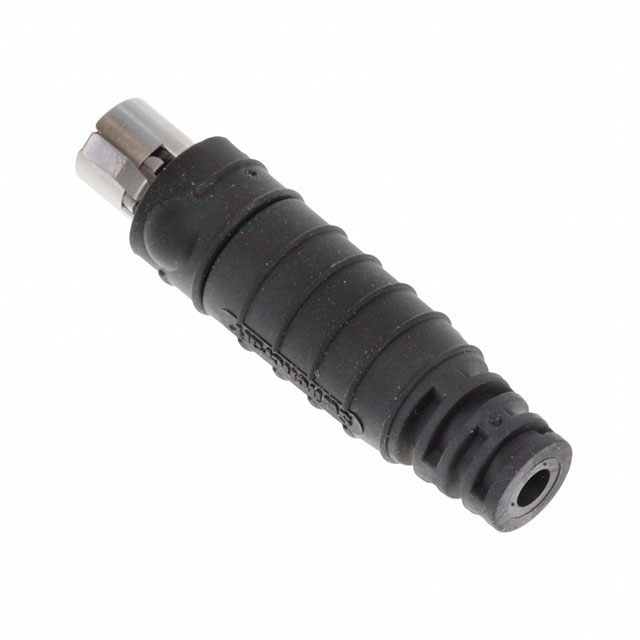

CONN PLUG FMALE MINI XLR 4P SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TA4FS15
ActiveSwitchcraft Inc.
CONN PLUG FMALE MINI XLR 4P SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TA4FS15 | TA4FS1 Series |
|---|---|---|
| Applications | Audio, Medical | Audio, Medical |
| Backshell Material, Plating | Thermoplastic, Thermoplastic Rubber | Thermoplastic, Thermoplastic Rubber |
| Cable Opening | - | 3.05 mm |
| Cable Opening [Max] [diameter] | 4.06 mm | 4.06 mm |
| Cable Opening [Max] [diameter] | 0.16 in | 0.12 - 0.16 in |
| Cable Opening [Min] [diameter] | 0.14 in | 0.1 - 0.14 in |
| Cable Opening [Min] [diameter] | 3.56 mm | 2.54 - 3.56 mm |
| Color | Black, Silver | Black, Silver |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Backshell, Strain Relief, Cable Clamp | Backshell, Strain Relief, Cable Clamp |
| Ingress Protection | IP66, IP65 | IP66, IP65 |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | Mini XLR | Mini XLR |
| Voltage Rating | 125 VAC | 125 VAC |
TA4FS1 Series
CONN PLUG FMALE MINI XLR 4P SLDR
| Part | Features | Current Rating (Amps) | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Number of Positions | Voltage Rating | Ingress Protection | Backshell Material, Plating | Color | Applications | Contact Finish - Mating | Mounting Type | Shell Material | Shell Size - Insert | Primary Material | Orientation | Fastening Type | Connector Type | Contact Material | Shell Finish | Insert Material | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. TA4FS11 | Backshell, Cable Clamp, Strain Relief | 5 A | 3.05 mm | 0.12 in | 2.54 mm | 0.1 in | 4 | 125 VAC | IP65, IP66 | Thermoplastic, Thermoplastic Rubber | Black, Silver | Audio, Medical | Silver | Free Hanging (In-Line) | Copper Alloy | Mini XLR | Metal | Keyed | Latch Lock | Female Sockets, Plug | Copper Alloy | Nickel | Thermoplastic | |
Switchcraft Inc. TA4FS15 | Backshell, Cable Clamp, Strain Relief | 5 A | 0.16 in | 3.56 mm | 0.14 in | 4 | 125 VAC | IP65, IP66 | Thermoplastic, Thermoplastic Rubber | Black, Silver | Audio, Medical | Silver | Free Hanging (In-Line) | Copper Alloy | Mini XLR | Metal | Keyed | Latch Lock | Female Sockets, Plug | Copper Alloy | Nickel | Thermoplastic | 4.06 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 17.39 | |
Description
General part information
TA4FS1 Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
Documents
Technical documentation and resources
