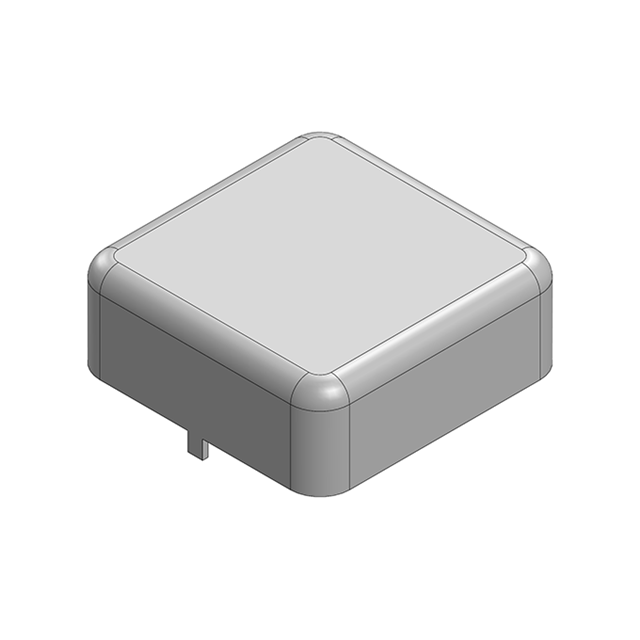

MS135-20S
ActiveMasach Tech Ltd.
RF SHIELD 0.531"X0.531" SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
MS135-20S
ActiveMasach Tech Ltd.
RF SHIELD 0.531"X0.531" SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS135-20S |
|---|---|
| Height - Overall [z] | 5 mm |
| Height - Overall [z] | 0.197 in |
| Length - Overall [x] | 0.531 " |
| Length - Overall [x] | 13.5 mm |
| Mounting Type | Solder |
| Type | Shield, 1-Piece |
| Ventilation | Non-Vented |
| Width - Overall [x] | 13.5 mm |
| Width - Overall [x] | 0.531 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.07 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.08 | |||
| 140 | $ 0.81 | |||
| 280 | $ 0.73 | |||
| 560 | $ 0.66 | |||
| 980 | $ 0.61 | |||
| 2520 | $ 0.55 | |||
| 4900 | $ 0.51 | |||
Description
General part information
MS135 Series
RF Shield Shield, 1-Piece 0.531" (13.50mm) X 0.531" (13.50mm) Non-Vented Solder
