General part information

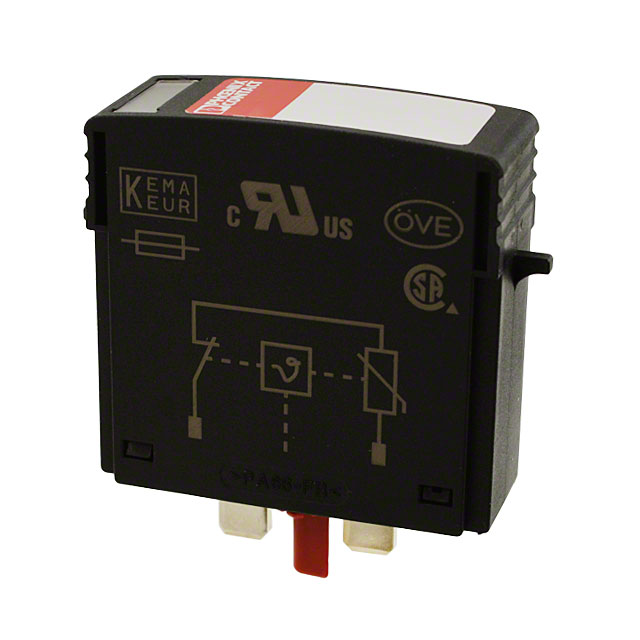

Surge Suppressors VAL-MS 350/20/3+1
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2838843 | VAL-MS Series |
|---|---|---|
| AC Outlets | - | None |
| Approval Agency | GL, UL, cULus, cUL, OVE, KEMA-KEUR, EAC, CB, CCA | CCA, KEMA, GOST, OVE, CB, GL, UL, cULus, cUL, KEMA-KEUR, EAC |
| Connector - AC Input | - | Screw Terminals |
| Connector - AC Output | - | Screw Terminals |
| Current - Discharge (Max) (8/20µS) | 40 kA | 40 kA |
| Current - Discharge (Nom) (8/20µS) | 20 kA | 20 kA |
| Current - Short Circuit Rating (SCCR) | 25 kA | 25 kA |
| Form | Module Only | Module Only |
| Mounting Type | Base Mount | DIN Rail, Base Mount |
| Number of Poles | 1 | 1 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Overload Protection | - | None |
| Region Utilized | - | International |
| Type | Type 2 | Type 2 |
| Voltage - Continuous Operating (Max) (MCOV) [Max] | 320 VAC | 320 VAC |
| Voltage - Protection Level (VP) (2416) | 1.5 kV | 1.5 kV |
Surge Suppressors VAL-MS 350/20/3+1
| Part | Connector - AC Output | Mounting Type | Connector - AC Input | Region Utilized | AC Outlets | Approval Agency | Overload Protection | Type | Voltage - Continuous Operating (Max) (MCOV) [Max] | Form | Current - Discharge (Nom) (8/20µS) | Number of Poles | Operating Temperature [Min] | Operating Temperature [Max] | Current - Short Circuit Rating (SCCR) | Voltage - Protection Level (VP) (2416) | Current - Discharge (Max) (8/20µS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2803548 | Screw Terminals | DIN Rail | Screw Terminals | International | None | CB, CCA, GOST, KEMA, OVE | None | ||||||||||
Phoenix Contact 2838843 | Base Mount | CB, CCA, cUL, cULus, EAC, GL, KEMA-KEUR, OVE, UL | Type 2 | 320 VAC | Module Only | 20 kA | 1 | -40 °C | 80 C | 25 kA | 1.5 kV | 40 kA |
