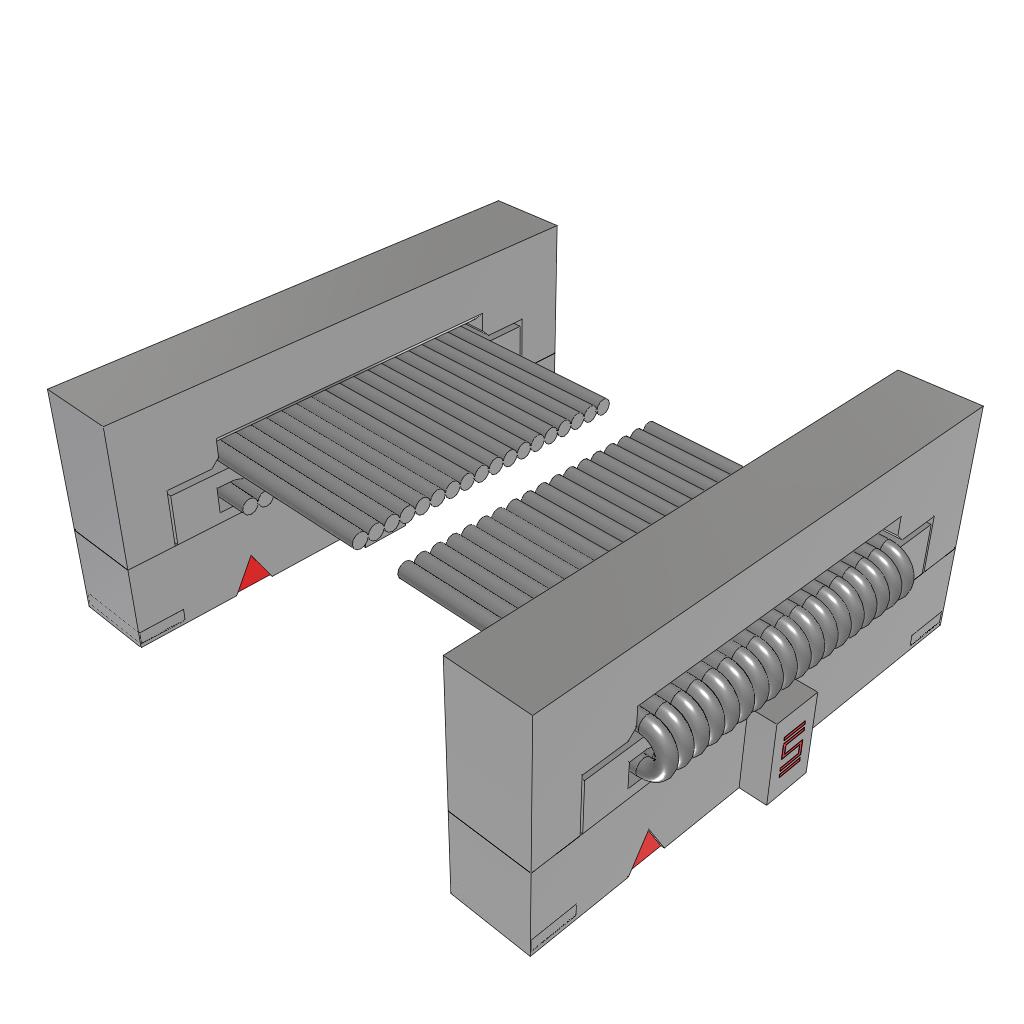

FFSD-09-D-06.00-01-N-SR

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFFSD Datasheet Datasheet

FFSD-09-D-06.00-01-N-SR

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsFFSD Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-09-D-06.00-01-N-SR

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	18
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-09 Series

Part	Features	Pitch - Connector	Pitch - Connector	Shielding	Number of Positions	Connector Type	Contact Finish	Number of Rows	Length [x]	Length [x]	Length [x]	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable [x]	Pitch - Cable	Length	Length	Length	Length
Samtec Inc. FFSD-09-D-04.00-01-N-R	Polarizing Key Reverse Wiring	0.05 in	1.27 mm	Unshielded	18	Socket to Socket Reversed	Gold	2	4 "	0.333 ft	101.6 mm	IDC	10 Áin	0.25 Ám	0.025 in	0.64 mm
Samtec Inc. FFSD-09-S-18.00-01-N	Polarizing Key	0.05 in	1.27 mm	Unshielded	18	Socket to Cable	Gold	2		1.5 ft	457.2 mm	IDC	10 Áin	0.25 Ám	0.025 in	0.64 mm
Samtec Inc. FFSD-09-D-11.00-01-N	Polarizing Key	0.05 in	1.27 mm	Unshielded	18	Socket to Socket	Gold	2	11 "	0.917 ft	279.4 mm	IDC	10 Áin	0.25 Ám	0.025 in	0.64 mm
Samtec Inc. FFSD-09-D-10.00-01-N-SR	Polarizing Key Strain Relief	0.05 in	1.27 mm	Unshielded	18	Socket to Socket	Gold	2				IDC	10 Áin	0.25 Ám	0.025 in	0.64 mm	10 in	0.833 ft	254 mm
Samtec Inc. FFSD-09-D-02.00-01-N-R	Polarizing Key Reverse Wiring	0.05 in	1.27 mm	Unshielded	18	Socket to Socket Reversed	Gold	2				IDC	10 Áin	0.25 Ám	0.025 in	0.64 mm	2 "	0.167 '	50.8 mm
Samtec Inc. FFSD-09-S-12.00-01-N	Polarizing Key	0.05 in	1.27 mm	Unshielded	18	Socket to Cable	Gold	2				IDC	10 Áin	0.25 Ám	0.025 in	0.64 mm		1 ft	304.8 mm
Samtec Inc. FFSD-09-D-06.00-01-N	Polarizing Key	0.05 in	1.27 mm	Unshielded	18	Socket to Socket	Gold	2				IDC	10 Áin	0.25 Ám	0.025 in	0.64 mm	6 "		152.4 mm	0.5 '
Samtec Inc. FFSD-09-D-01.30-01-N	Polarizing Key	0.05 in	1.27 mm	Unshielded	18	Socket to Socket	Gold	2				IDC	10 Áin	0.25 Ám	0.025 in	0.64 mm	1.3 "	0.108 '	33.02 mm
Samtec Inc. FFSD-09-S-10.00-01-N	Polarizing Key	0.05 in	1.27 mm	Unshielded	18	Socket to Cable	Gold	2				IDC	10 Áin	0.25 Ám	0.025 in	0.64 mm	10 in	0.833 ft	254 mm
Samtec Inc. FFSD-09-D-06.00-01-N-SR	Polarizing Key Strain Relief	0.05 in	1.27 mm	Unshielded	18	Socket to Socket	Gold	2				IDC	10 Áin	0.25 Ám	0.025 in	0.64 mm	6 "		152.4 mm	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.53

Description

General part information

FFSD-09 Series

18 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

FFSD Datasheet

Datasheet
