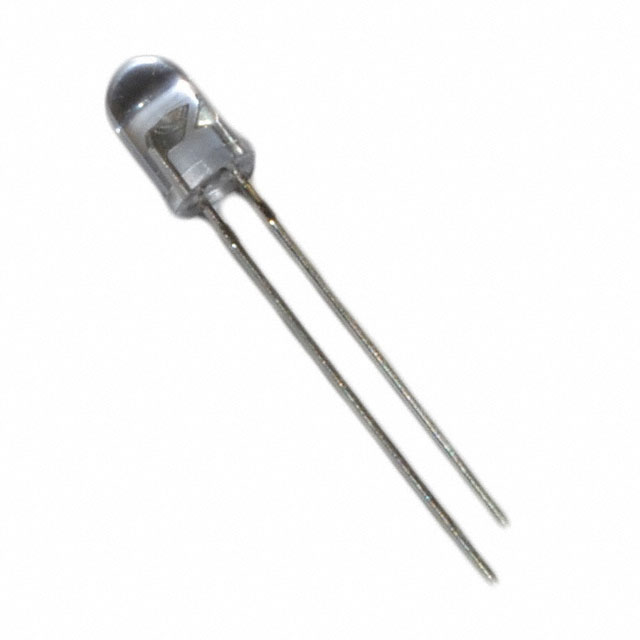

QBED8120

Active

QT Brightek (QTB)

EMITTER IR 940NM 50MA RADIAL

Search across all available documentation for this part.

Active

QT Brightek (QTB)

EMITTER IR 940NM 50MA RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	QBED8120

Current - DC Forward (If) (Max) [Max]	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-25 °C
Orientation	Top View
Package / Case	Radial
Radiant Intensity (Ie) Min @ If [Min]	30 mW/sr
Type	Infrared (IR)
Viewing Angle	20 °
Voltage - Forward (Vf) (Typ)	1.3 V
Wavelength	940 nm

EMITTER IR 940NM 50MA RADIAL

Part	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max) [Max]	Type	Radiant Intensity (Ie) Min @ If [Min]	Voltage - Forward (Vf) (Typ)	Package / Case	Mounting Type	Wavelength	Viewing Angle
QT Brightek (QTB) QBED8120	Top View	85 C	-25 °C	50 mA	Infrared (IR)	30 mW/sr	1.3 V	Radial	Through Hole	940 nm	20 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.14

General part information

Infrared (IR) Emitter 940nm 1.3V 50mA 30mW/sr @ 50mA 20° Radial
