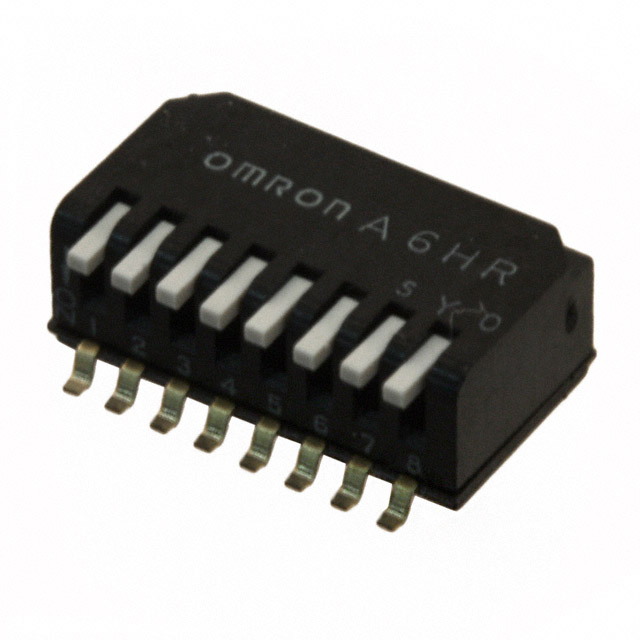

A6HR-8104

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH PIANO DIP SPST 0.025A 24V

Part	Mounting Type	Height Above Board	Height Above Board	Circuit	Voltage Rating	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Washable	Current Rating (Amps)	Electrical Life	Actuator Type	Termination Style	Actuator Level	Number of Positions	Pitch [x]	Pitch [x]	Length [x]	Length [x]
Omron Electronics Inc-EMC Div A6HR-8104	Surface Mount, Right Angle	0.165 "	4.2 mm	SPST	24 VDC	Gold	-30 ░C	85 °C		25 mA	1000 Cycles	Piano	Gull Wing	Raised	8	0.05 in	1.27 mm	0.444 in	11.28 mm
