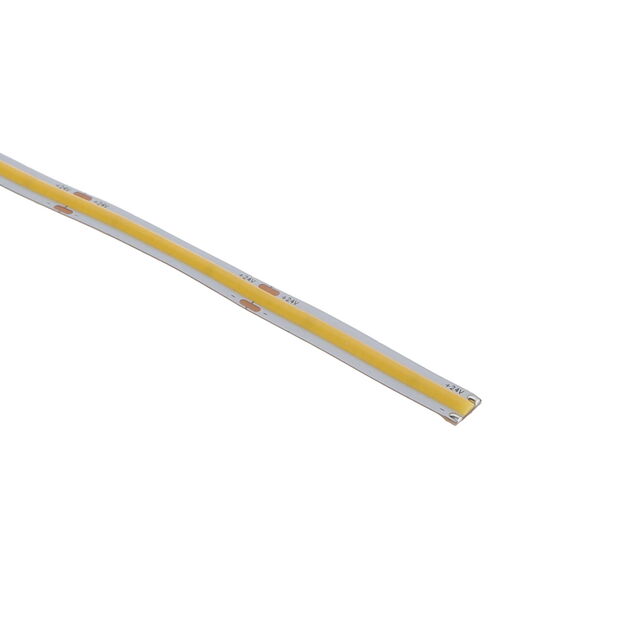

24V-COB-4000K-12M

Active

Inspired LED, LLC

LED COB WH LNR STRP 4000K

Search across all available documentation for this part.

Active

Inspired LED, LLC

LED COB WH LNR STRP 4000K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	24V-COB-4000K-12M	24V-COB Series

CCT (K)	4000 K	4000 K
Color	Neutral, White	Neutral, White, Warm
Configuration	Linear Light Strip, Flexible	Linear Light Strip, Flexible
CRI (Color Rendering Index)	91	91
Features	Dimming	Dimming
Height [z]	1.78 mm	1.78 mm
Lens Type	Flat	Flat
Luminous Flux @ Current/Temperature	2 lm	2 lm
Size / Dimension [x]	12000 mm, 50.04 mm	50.04 - 12000 mm
Size / Dimension [y]	8 mm	8 mm
Type	Chip On Board (COB)	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	24 V	24 V

LED COB WH LNR STRP 4000K

Part	CCT (K)	CRI (Color Rendering Index)	Configuration	Luminous Flux @ Current/Temperature	Color	Height [z]	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Lens Type	Features	Type
Inspired LED, LLC 24V-COB-4000K-12M	4000 K	91	Flexible, Linear Light Strip	2 lm	Neutral, White	1.78 mm	24 V	50.04 mm, 12000 mm	8 mm	Flat	Dimming	Chip On Board (COB)
Inspired LED, LLC 24V-COB-3000K-12M		91	Flexible, Linear Light Strip	2 lm	Warm, White	1.78 mm	24 V	50.04 mm, 12000 mm	8 mm	Flat	Dimming	Chip On Board (COB)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) - White, Neutral Linear Light Strip, Flexible

Technical documentation and resources
