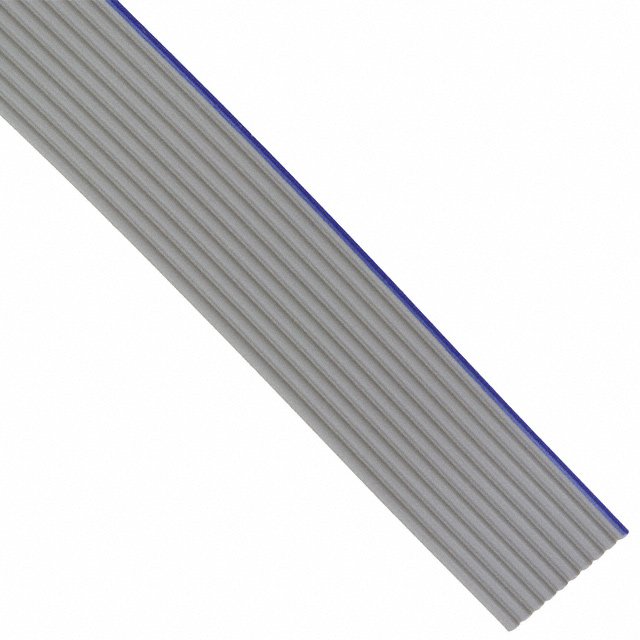

HF539/10 - HF539/10

HF539/10

Unknown
3M (TC)

RIBBON CABLE, LSZH MEDIUM FLEX FLAT, UNSHIELDED, 10 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCables & Accessories Selection GuideDatasheet+1
HF539/10 - HF539/10

HF539/10

Unknown
3M (TC)

RIBBON CABLE, LSZH MEDIUM FLEX FLAT, UNSHIELDED, 10 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

DocumentsCables & Accessories Selection GuideDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationHF539/10
Cable TypeFlat Cable
Conductor MaterialCopper, Tinned
Conductor Strand [custom]19 Strands
Conductor Strand [custom]40 AWG
Current Rating (Amps)1 A
FeaturesZippable
First Conductor MarkBlue
Insulation Resistance10 GOhm
Jacket (Insulation) MaterialPolyolefin (PO)
Jacket ColorGray
Length15.24 m, 304.8 mm, 7.62 m
Length50 ft, 1 ft, 25 ft
Length [x]100 ft
Length [x]30.48 m
Number of Conductors10
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch [x]0.05 in
Pitch [x]1.27 mm
RatingsUL Style 21682
Ribbon Thickness0.89 mm
Ribbon Thickness0.035 in
Ribbon Width [custom]0.5 "
Ribbon Width [custom]12.7 mm
ShieldingUnshielded
Voltage300 V
Wire Gauge28 AWG

HF539 Series

PartConductor MaterialWire GaugeInsulation ResistanceJacket (Insulation) MaterialLengthLengthNumber of ConductorsRibbon WidthRibbon WidthPitch [x]Pitch [x]Jacket ColorVoltageFirst Conductor MarkOperating Temperature [Min]Operating Temperature [Max]ShieldingRatingsRibbon ThicknessRibbon ThicknessCable TypeFeaturesConductor Strand [custom]Conductor Strand [custom]Length [x]Length [x]Current Rating (Amps)Ribbon Width [y]Ribbon Width [y]Ribbon Width [custom]Ribbon Width [custom]Ribbon Width
3M (TC)
HF539/50
Copper
Tinned
28 AWG
10 GOhm
Polyolefin (PO)
15.24 m
50 ft
50
63.5 mm
2.5 "
0.05 in
1.27 mm
Gray
300 V
Blue
-40 °C
105 ░C
Unshielded
UL Style 21682
0.89 mm
0.035 in
Flat Cable
Zippable
19 Strands
40 AWG
3.05 m
10 ft
1 A
3M (TC)
HF539/16
Copper
Tinned
28 AWG
10 GOhm
Polyolefin (PO)
304.8 mm
1 ft
16
0.05 in
1.27 mm
Gray
300 V
Blue
-40 °C
105 ░C
Unshielded
UL Style 21682
0.89 mm
0.035 in
Flat Cable
Zippable
19 Strands
40 AWG
1 A
20.32 mm
0.8 in
3M (TC)
HF539/40
Copper
Tinned
28 AWG
10 GOhm
Polyolefin (PO)
304.8 mm
1 ft
40
0.05 in
1.27 mm
Gray
300 V
Blue
-40 °C
105 ░C
Unshielded
UL Style 21682
0.89 mm
0.035 in
Flat Cable
Zippable
19 Strands
40 AWG
1 A
50.8 mm
2 in
3M (TC)
HF539/26
Copper
Tinned
28 AWG
10 GOhm
Polyolefin (PO)
15.24 m
304.8 mm
1 ft
50 ft
26
33.02 mm
1.3 "
0.05 in
1.27 mm
Gray
300 V
Blue
-40 °C
105 ░C
Unshielded
UL Style 21682
0.89 mm
0.035 in
Flat Cable
Zippable
19 Strands
40 AWG
1 A
3M (TC)
HF539/64
Copper
Tinned
28 AWG
10 GOhm
Polyolefin (PO)
7.62 m
304.8 mm
1 ft
25 ft
64
0.05 in
1.27 mm
Gray
300 V
Blue
-40 °C
105 ░C
Unshielded
UL Style 21682
0.89 mm
0.035 in
Flat Cable
Zippable
19 Strands
40 AWG
3.05 m
30.48 m
10 ft
100 ft
1 A
81.28 mm
3.2 in
3M (TC)
HF539/10
Copper
Tinned
28 AWG
10 GOhm
Polyolefin (PO)
7.62 m
15.24 m
304.8 mm
1 ft
25 ft
50 ft
10
0.05 in
1.27 mm
Gray
300 V
Blue
-40 °C
105 ░C
Unshielded
UL Style 21682
0.89 mm
0.035 in
Flat Cable
Zippable
19 Strands
40 AWG
30.48 m
100 ft
1 A
0.5 "
12.7 mm
3M (TC)
HF539/20
Copper
Tinned
28 AWG
10 GOhm
Polyolefin (PO)
7.62 m
15.24 m
304.8 mm
1 ft
25 ft
50 ft
20
1 in
0.05 in
1.27 mm
Gray
300 V
Blue
-40 °C
105 ░C
Unshielded
UL Style 21682
0.89 mm
0.035 in
Flat Cable
Zippable
19 Strands
40 AWG
30.48 m
100 ft
1 A
25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 54.38
1$ 3.89
1$ 92.79
1$ 13.67
5$ 44.85
5$ 11.32
10$ 10.41
10$ 41.08
25$ 9.34
25$ 36.72
50$ 8.58
50$ 33.74
100$ 30.76
100$ 7.87
Spool 100$ 1.86
300$ 1.64
500$ 1.48
1000$ 1.34
NewarkSpool of 100 1$ 151.14

Description

General part information

HF539 Series

Flat Ribbon Cable Gray 10 Conductors 0.050" (1.27mm) Flat Cable 1.00' (304.80mm)
