2-917809-2

Active

TE Connectivity AMP Connectors

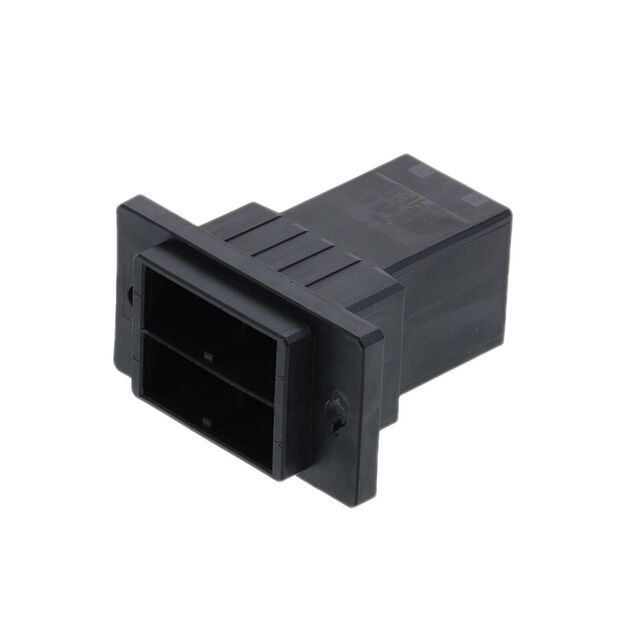

CONN PLUG HSG 4POS 10.16MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 4POS 10.16MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-917809-2	917809 Series

Color	Black	Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Tab	Tab
Features	Polarizing Key	Polarizing Key
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	4 - 6
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	10.16 mm	10.16 mm
Pitch [x]	0.4 in	0.4 in
Row Spacing	0.4 in	0.4 in
Row Spacing	10.16 mm	10.16 mm

CONN PLUG HSG 6POS 10.16MM

Part	Row Spacing	Row Spacing	Note	Operating Temperature [Max]	Operating Temperature [Min]	Color	Insulation Material	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Features	Contact Termination	Number of Positions	Contact Type
TE Connectivity AMP Connectors 2-917809-3	0.4 in	10.16 mm	Contacts Not Included	105 ░C	-55 °C	Black	Glass Filled, Polyester, Thermoplastic	Plug	10.16 mm	0.4 in	2	Polarizing Key	Crimp	6	Tab
TE Connectivity AMP Connectors 2-917809-2	0.4 in	10.16 mm	Contacts Not Included	105 ░C	-55 °C	Black	Glass Filled, Polyester, Thermoplastic	Plug	10.16 mm	0.4 in	2	Polarizing Key	Crimp	4	Tab

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Black 0.400" (10.16mm)
