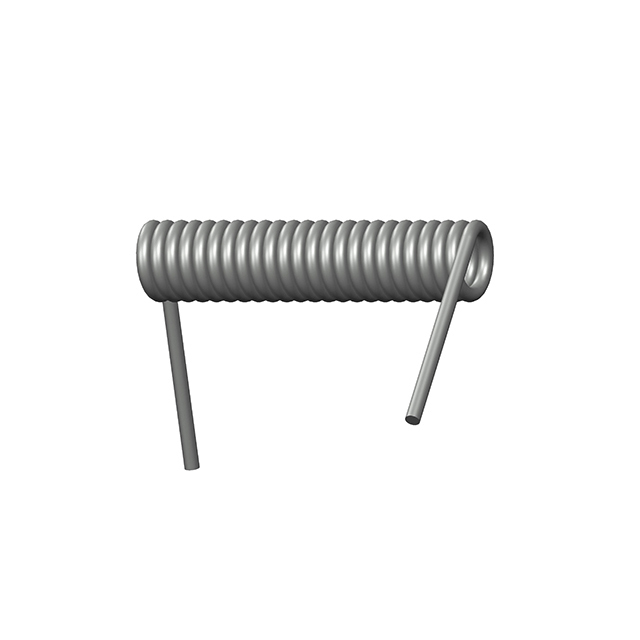

TO-1010CS
ActiveCentury Spring Corp
TOR O=.269, W=.049
TO-1010CS
ActiveCentury Spring Corp
TOR O=.269, W=.049
Description
General part information
TO-1010CS
TOR O=.269, W=.049
Technical Specifications
Parameters and characteristics for this part
| Specification | TO-1010CS |
|---|---|
| Deflection Angle | 258 ° |
| Diameter - Outside | 0.27 in |
| Finish | None |
| Leg Length | 0.74 in |
| Mandrel Diameter | 0.14 in |
| Material | Music Wire |
| Number of Coils | 22.875 |
| Wind Direction | Right |
| Wire Diameter | 0.049 in |
