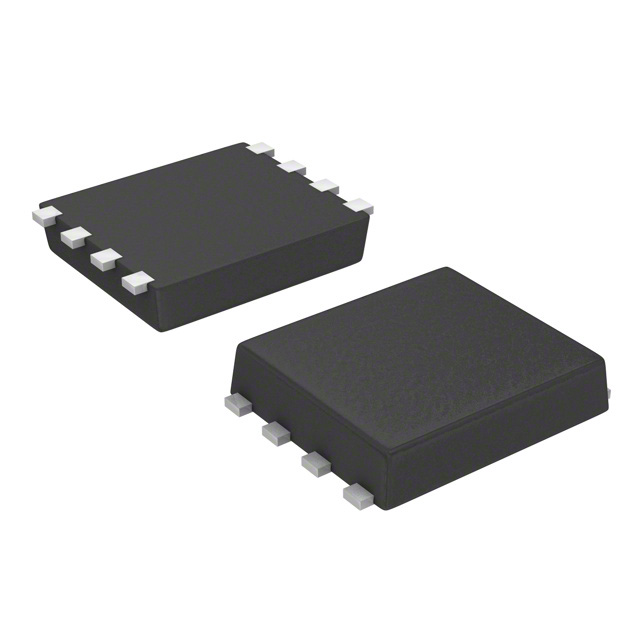

S-93C66BD0I-I8T1U

ABLIC Inc.

IC EEPROM 4KBIT MICROWIRE SNT8A

Search across all available documentation for this part.

ABLIC Inc.

IC EEPROM 4KBIT MICROWIRE SNT8A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.25

General part information

EEPROM Memory IC 4Kbit Microwire 2 MHz SNT-8A

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	S-93C66BD0I-I8T1U	93C66B Series

Clock Frequency	2 MHz	2 MHz
Memory Format	EEPROM	EEPROM
Memory Interface	Microwire	Microwire
Memory Organization	256 x 16	256 x 16
Memory Size	4 Kbit	4 Kbit
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	-	8-SOIC, 8-TSSOP, 8-DIP
Package / Case	-	3.9 mm
Package / Case	-	0.154 in
Package / Case	-	0.173 "
Package / Case	-	4.4 mm
Package / Case	-	0.3 in
Package / Case	-	7.62 mm
Supplier Device Package	SNT-8A	8-SOP-J, SNT-8A, 8-TSSOP, 8-DIP
Technology	EEPROM	EEPROM
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	1.8 V	1.8 V
Write Cycle Time - Word, Page [custom]	8 ms	8 ms
Write Cycle Time - Word, Page [custom]	8 ms	8 ms

IC EEPROM 4KBIT SPI 2MHZ 8SOPJ

Part	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Memory Format	Supplier Device Package	Memory Interface	Package / Case	Package / Case [y]	Package / Case [x]	Memory Organization	Memory Size	Technology	Clock Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Type	Package / Case [custom]	Package / Case [custom]	Package / Case	Package / Case
ABLIC Inc. S-93C66BD0I-J8T1U	8 ms	8 ms	85 °C	-40 °C	Surface Mount	EEPROM	8-SOP-J	Microwire	8-SOIC	3.9 mm	0.154 in	256 x 16	4 Kbit	EEPROM	2 MHz	1.8 V	5.5 V	Non-Volatile
ABLIC Inc. S-93C66BD0I-I8T1U	8 ms	8 ms	85 °C	-40 °C	Surface Mount	EEPROM	SNT-8A	Microwire				256 x 16	4 Kbit	EEPROM	2 MHz	1.8 V	5.5 V	Non-Volatile
ABLIC Inc. S-93C66BD0I-T8T1G	8 ms	8 ms	85 °C	-40 °C	Surface Mount	EEPROM	8-TSSOP	Microwire	8-TSSOP			256 x 16	4 Kbit	EEPROM	2 MHz	1.8 V	5.5 V	Non-Volatile	0.173 "	4.4 mm
ABLIC Inc. S-93C66BD0I-D8S1G	8 ms	8 ms	85 °C	-40 °C	Through Hole	EEPROM	8-DIP	Microwire	8-DIP			256 x 16	4 Kbit	EEPROM	2 MHz	1.8 V	5.5 V	Non-Volatile			0.3 in	7.62 mm
